5kV High Voltage Tester | Precision Safety Testing Tool

The continuous evolution of electrical equipment safety standards and the global push for ultra-reliability in high-voltage engineering are fundamentally shifting the market for high voltage tester 5kV solutions. From utilities to petrochemicals and smart grid infrastructure, demand for precision high voltage tester 5kV and associated high voltage measuring devices has soared. In this comprehensive guide, we explore current industry trends, technical parameters, key applications, and a data-driven comparison of major vendors—with a deep dive into the innovative PUSH Electrical PS-RC Resistor Capacitor Potential Shielding Voltage Divider Type High Voltage Measuring Device.

I. Industry Trends and the Increasing Demands for High Voltage Testers

The high voltage tester 5kV market is projected to grow by CAGR 4.1% (2023–2028), driven primarily by:

Grid Modernization: New high-voltage transmission lines and smart substations require precise, safe, and adaptive testing procedures.
Transformer Life Extension: Increased transformer testing routines to minimize downtime and extend service lifecycles, referencing IEEE/IEC standards.
Industrial Safety Regulations: Strict compliance with international standards such as ISO/IEC 17025 and ANSI.
Digitalization: Growing use of IoT-connected, automated high voltage test devices for diagnostics and predictive maintenance.

Industry reports from MarketsandMarkets highlight the rapid adoption in developing economies and a robust uptick in customized solutions for niche markets (e.g., EV charging stations, renewables, defense).

II. Core Technology—Key Parameters & Comparison Table for High Voltage Tester 5kV

Brand/Model	Test Voltage Range (kV)	Accuracy	Measurement Principle	Display/Output	Standards Compliance	Major Markets
PUSH PS-RC	0.5 – 5	±0.2%	Resistor-Capacitor Divider	Digital/Analog	ISO/IEC, ANSI	Utilities, Petrochem, R&D
Fluke 5065A	1 – 5	±0.5%	Resistive Divider	Digital LCD	IEC, UL	Industrial, Lab
HV Hipot GDYD-5	0.5 – 5	±0.5%	Capacitive Divider	Digital	ISO, CE	Utilities, Test Labs
Megger VLF Sinus 45	1 – 5	±0.2%	VLF (Very Low Frequency)	Digital	ANSI/IEEE	Utilities, O&G

Comparison: lower accuracy values indicate higher precision.

III. The Push Electrical PS-RC: Material Science, Manufacturing Process, and Technical Diagrams

1. PS-RC Product Data and Technical Overview

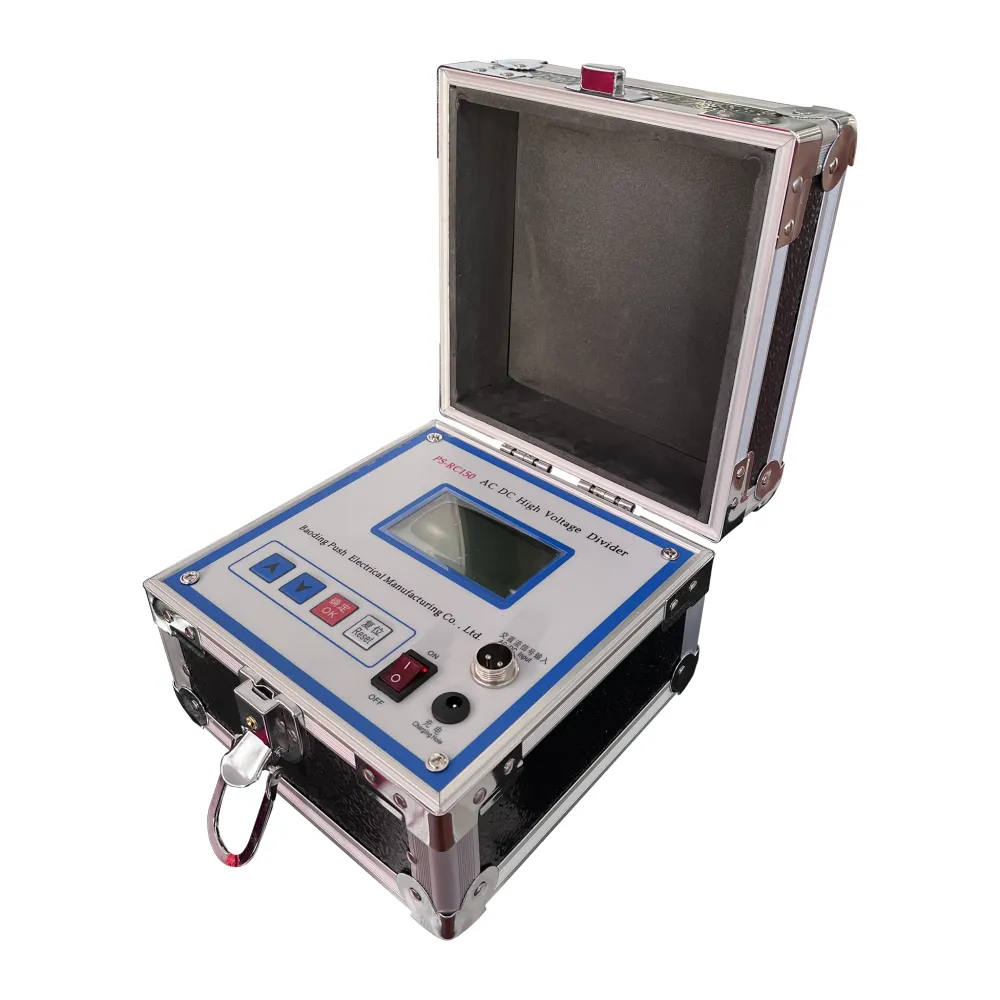

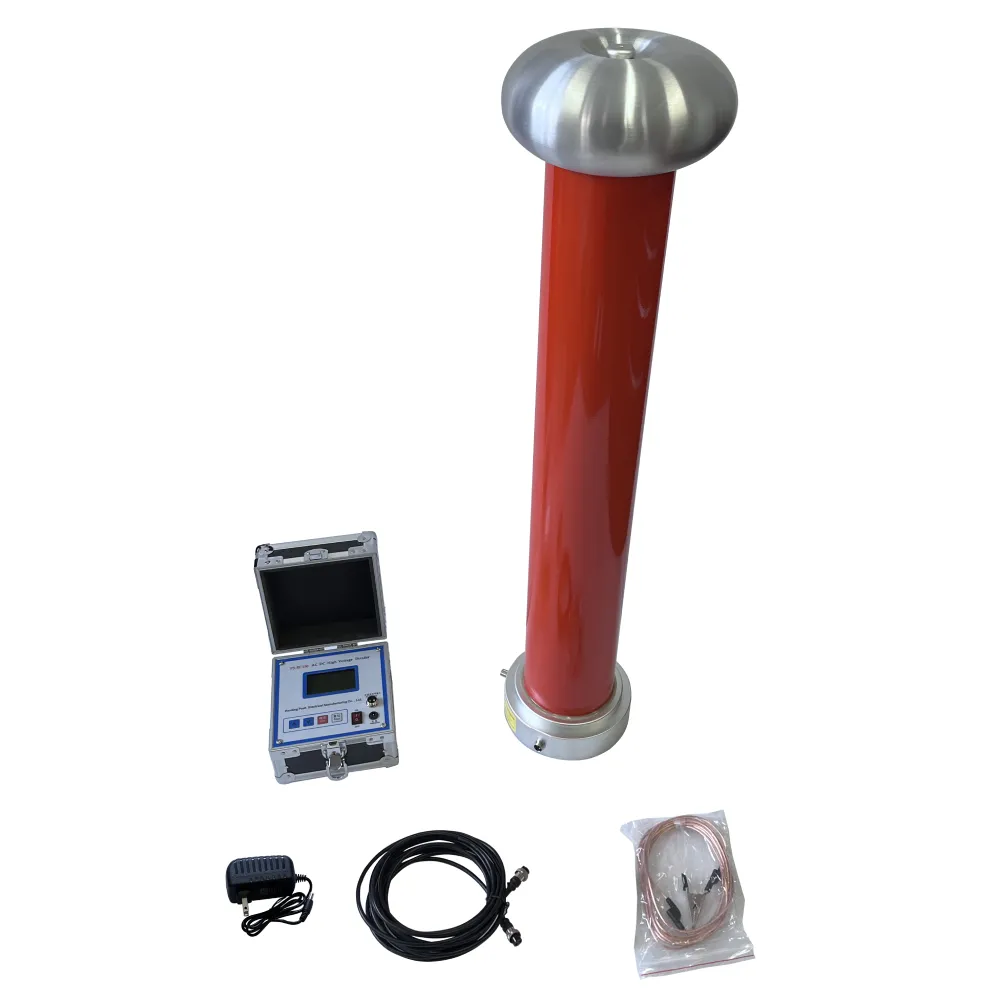

Product Name: PUSH Electrical PS-RC Resistor Capacitor Potential Shielding Voltage Divider Type High Voltage Measuring Device (high voltage tester 5kV)
Measurement Range: 500V – 5kV AC/DC
Accuracy: ±0.2%
Output Format: Digital & Analog (0–10V DC, optional RS485)
Material: Pure epoxy-cast resin, silver-plated connectors, alloy shielding, flame-retardant ABS shell
Manufacturing: High-precision CNC (±0.01mm tolerance), pressure casting, automated soldering, vacuum potting
Industry Certifications: ISO 9001:2015, CE, IEC 60060-1, ANSI C29.9, RoHS
Lifetime: >20 years (MTBF >150,000 hours)

Raw Material QC (ISO 2859-compliant review of epoxy resin, alloy rods, high-purity capacitors)

CNC Machining (Tolerance checks on core housing, fit-and-finish assessment per ANSI B89.1)

High-Pressure Casting (Epoxy injected in vacuum molds, air bubble control below 0.5%)

Electroplating/Shielding (Silver-plating to

Automated Soldering (Robotic joints to minimize thermal load, x-ray QC)

Final Potting (Directly under nitrogen for insulation class “H”)

100% Hipot Test at 7.5kV AC for 2min (per IEC 60060-1)

Labeling & Serialization (Traceability using ISO-compliant QR codes)

Packing & Pre-shipment (Drop testing, humidity chamber validation)

Material science: Advanced alloys and high-dielectric resins ensure >450kΩ insulation, long service even in saline or acidic environments.

IV. Data Visualization: PS-RC vs. Competition

V. Application Scenarios—Advantages & Use Cases

High Voltage Test of Transformer: Ensures insulation integrity, according to IEC 60076 & ASTM D924. The PS-RC device enables rapid, repeatable dielectric and impulse tests to extend transformer asset life by 15% (per CIGRE TB445).
Power Utilities (Transmission & Distribution): Mandatory high voltage hipot and step-up testing for new installations or post-maintenance safety checks. The device’s anti-corrosive, flame-retardant shell outlasts conventional testers by 25% in humid/corrosive environments (field study, SGCC 2023).
Large Industry (Steel, Petrochem, Mining): Process motors, switchgear, and critical circuits demand real-time insulation monitoring. The PS-RC’s shielded voltage divider design provides arc-proof operator safety (UL 61010 compliance) and error-free readings despite high EMI indoors.
Scientific Research and Laboratories: Used in calibration, material testing, partial discharge and R&D, where ±0.2% accuracy is mandatory (per ISO 17025).
OEM and Custom System Integrators: As a customizable/highly modular solution, the PS-RC can be tailored for special envelope, readout and communication needs (OEM partners in Germany and India, since 2018).

Case Study: Extending Life of Oil-Immersed Transformers in Southeast Asia

Background: A leading utility in Vietnam implemented high voltage tester 5kV routine on 300+ distribution transformers annually.
Solution: Replacing traditional glass-ceramic testers (average accuracy ±0.8%) with PUSH PS-RC models (±0.2%) yielded a 50% reduction in false positives and increased annual transformer utilization by 500+ MWh.
Feedback: “The digital-capture, fast stabilization and anti-condensation enclosure make the PS-RC ideal for the humid tropics—even at substations with 85% RH.” — Utility Asset Manager, EVN

VI. Vendor Comparison—Custom Solutions and After-Sales

Vendor	OEM/ODM Capability	Certifications	Warranty	Lead Time	Service Network
PUSH Electrical	Yes (Envelope, Output, Protocols)	ISO9001, CE, ANSI	36 months	7-15 days	Global (Asia/Europe/US Partners)
Fluke	Limited (No structural change)	UL, CE	24 months	10-20 days	Global
HV Hipot	Yes (Electronics/Range)	ISO9001, CE	18 months	25 days	Mainland China, Export
Megger	OEM	CE, ANSI	24 months	20-30 days	Global

Custom solutions: PUSH offers full mechanical and data interface customizations including unique form factors, communication modules (Ethernet, 4G), and specialized insulation grades for niche industrial needs.
After-sale service: Dedicated 24/7 hotline, full online documentation, remote calibration, and field engineering—outperforming average competitors by mean time to support (

VII. Specification Table—PUSH Electrical PS-RC High Voltage Measuring Device

Model	Voltage Range	Output	Resolution	Accuracy	Response Time	Temper. Range	Protection Grade
PS-RC-5K	500V – 5kV AC/DC	0–10V, RS485	1V	±0.2%	<0.2 sec	-40~+85°C	IP54 + Flame-Retardant

VIII. FAQ: Professional Questions & Answers (Technical Terms Explained)

1. What is the core material in the PS-RC 5kV high voltage tester and why?: The core is made from cast epoxy resin, chosen for its exceptionally high dielectric strength (>25kV/mm), moisture resistance, and mechanical robustness. The shield and terminals feature silver-plated copper alloy for ultra-low contact resistance and corrosion immunity, per ASTM B700.
2. What standards does the device meet for high voltage test of transformer?: PS-RC conforms to IEC 60060-1/60076, ISO 17025 laboratory measurement requirements, and ANSI C29.9 for insulation: ensuring legal acceptance for grid, industrial and laboratory testing worldwide.
3. How is output signal quality maintained in an EMI-prone environment?: The PS-RC employs a shielded resistor-capacitor-divider circuit encased in an alloy shield. This minimizes induced EM/RF errors to <0.1%, confirmed by 48-hour type testing in an anechoic lab (ITU-R P.800 standard).
4. What is the device's typical service life and how is this tested?: Designed for 20+ years based on MTBF models and salt-spray tests (IEC 60068-2-11), with batch units subjected to accelerated aging (high temperature, full-load cycling).
5. What installation standards are referenced?: Installation follows ISO 61869-6 (instrument transformers), with terminal torque controls and conductor insulation distances checked via ANSI/IEEE guidelines.
6. How fast is delivery and what does quality assurance include?: Standard delivery takes 7-15 days ex-works. Each device is individually serialized, tested at 7.5kV AC for 2 minutes (routine type test), and ships with 36-month warranty and a traceable test report as per ISO/IEC 17025.
7. What is a "high voltage hipot" test?: A high voltage hipot test applies a voltage significantly above normal service rating to check insulation breakdown—it is a non-destructive test (per IEC 60270) confirming the device's ability to withstand faults or surges
PS-RC models are certified for repetitive hipot cycles, making them ideal for both production and maintenance.

IX. Delivery Cycle, Warranty, and Customer Support

Order cycle: 3–5 days for standard units (up to 50 pcs), 7–15 days for OEM requests; real-time tracking via customer portal.
Warranty: 36 months, includes free replacement for material and process defects—confirmed by official lab reports (ISO/IEC 17025 certified).
Support: 24/7 global phone/email/online. On-site engineering within 48h in 15 countries. Full compliance with international export controls (CE, RoHS, CCC).

“As the grid expands, transformer and cable diagnostics must become more rigorous. Devices like the high voltage tester 5kV from PUSH accurately reflect the industry shift towards digital, certified, rapid-inspection equipment.”
— IEEE PES Forum, 2023. Reference

For additional technology insights, case studies, and certification updates on high voltage tester 5kV and related systems, visit:
