Why the breakdown voltage test on power transformer oil still matters (and how labs really run it)

If you spend any time in substations or oil labs, you know the breakdown voltage test on power transformer oil is a deceptively simple bellwether. To be honest, it’s not flashy—but it’s the quickest way to spot moisture, particles, or aging by-products nibbling away at insulation margins.

What’s trending in BDV testing

Across utilities and labs, I’m seeing tighter procedural discipline and more automation. IEC 60156 test sequences, auto-clean prompts, and logged ramp-rate integrity checks are becoming standard. Actually, many customers say the biggest win is consistency—repeatable oil cup geometry plus clean electrodes equals data they can defend in audits.

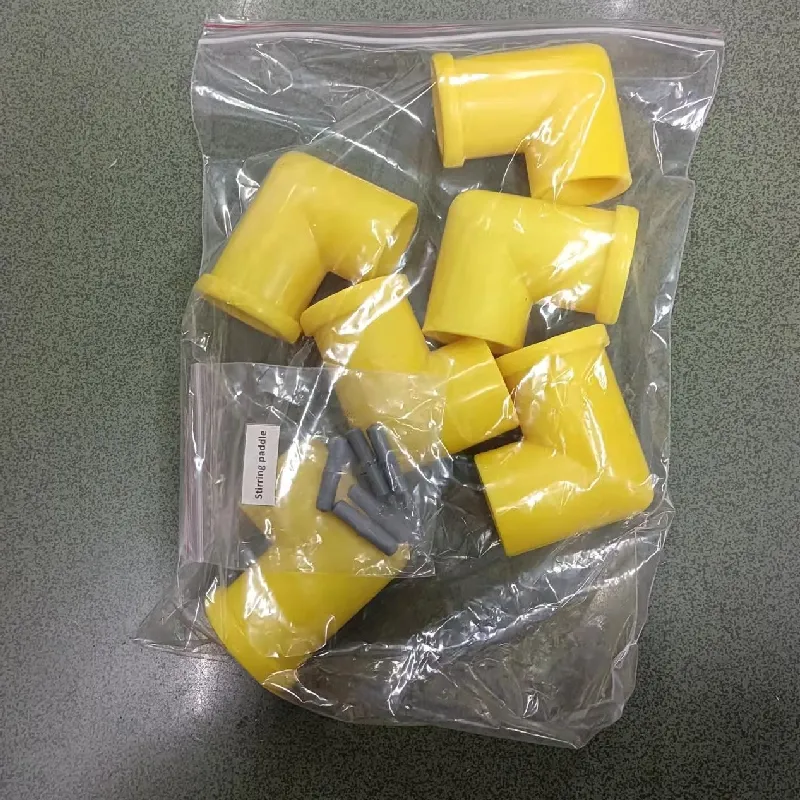

Product spotlight: Oil Cup accessory

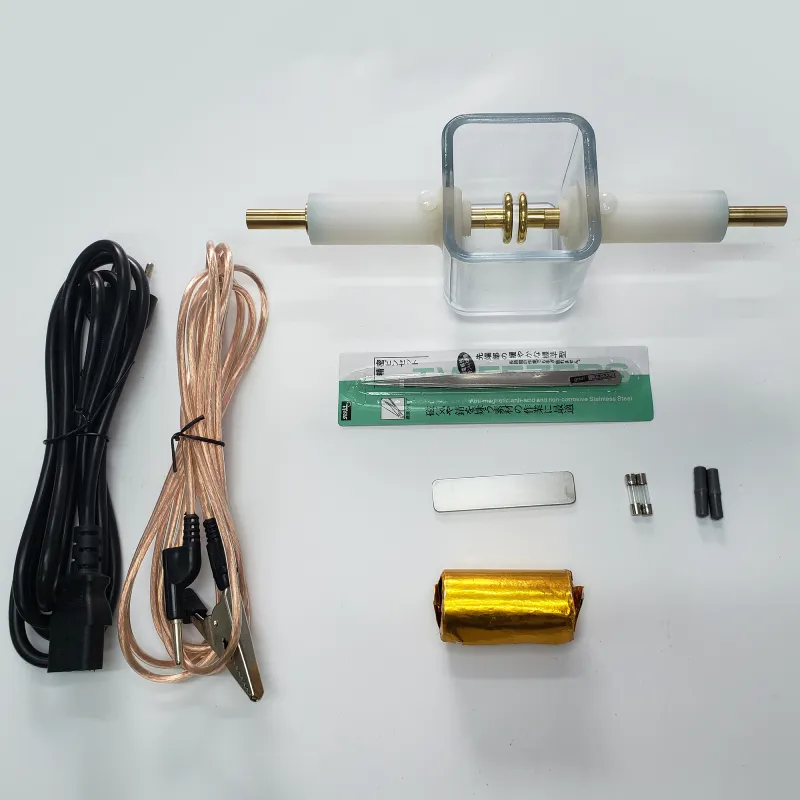

For the Oil BDV Tester, the Insulating Oil Dielectric Strength Tester Accessories, Oil Cup (origin: Room 302, Building 5, Baoding Zhongguancun DigitalEconomy Industrial Park, No. 777 Lixing Street, Jingxiu District, Baoding Hebei Province) is the unsung hero. It looks simple; it isn’t. Cup material, electrode finishing, and gap stability make or break your numbers.

How labs actually run it (process flow)

1. Materials: clean bottle, lint-free wipes, calibrated gap gauge, fresh electrodes, the oil cup, and a verified BDV set.
2. Sampling: avoid moisture ingress; follow IEC 60475 practices. Degas if specified.

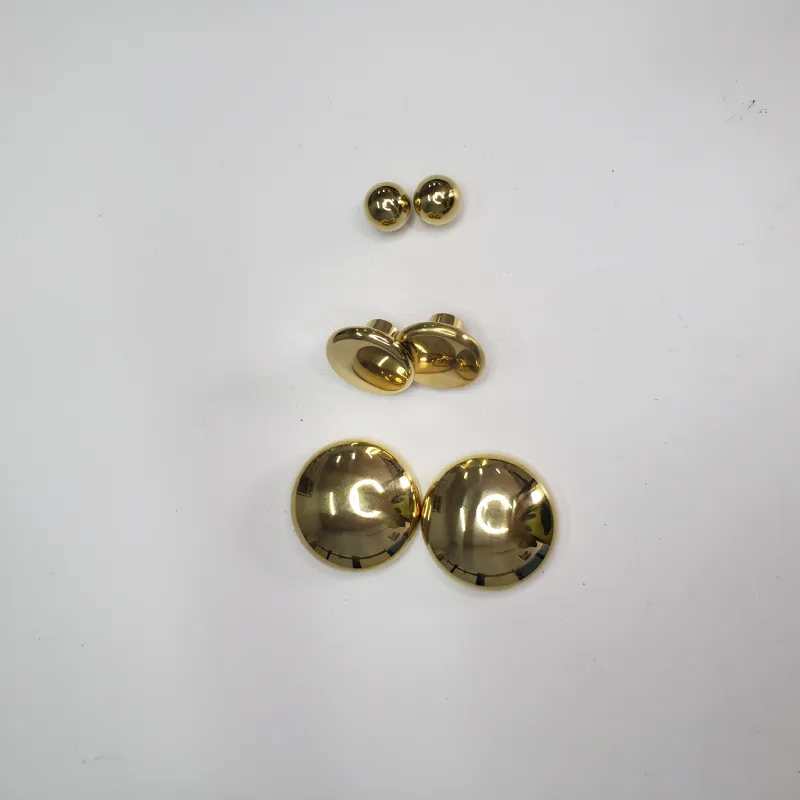

3. Prep: rinse the cup with test oil, wipe electrodes, set gap (e.g., IEC 60156 uses 2.5 mm spherical).
4. Method: ramp voltage at the standard rate; record breakdowns; remove carbonized paths between shots.
5. Statistics: take 5–6 shots; compute mean BDV and deviation; flag outliers.
6. Documentation: tie results to transformer ID, temperature, and humidity; store with LIMS.

Typical test data I see: new, dry mineral oil often 70–80 kV (IEC 60156), service-aged oil 25–40 kV, and wet oil below 20 kV. When the breakdown voltage test on power transformer oil dips unexpectedly, 8 times out of 10 it’s moisture or contamination.

Applications, advantages, and feedback

• Industries: power generation, T&D utilities, petroleum labs, OEM transformer factories.
• Advantages: fast moisture proxy, trending-friendly, low per-test cost.
• Customer note: “Stability of the cup gap saved us from chasing ghost faults,” one maintenance team told me.

Vendor comparison (indicative)

Customization options

Labs often request custom electrode kits, branded engraving, anti-static lids, and spare cup sets for parallel testing. It seems minor—until turnaround time matters. And when the breakdown voltage test on power transformer oil is on your critical path, minutes count.

Standards and compliance

Anchor to IEC 60156 for global comparability. ASTM D1816 (spherical, stirred) is moisture-sensitive; ASTM D877 (flat discs) is more contamination-tolerant. For maintenance rules, IEC 60422 is a handy companion. Keep calibration certs current—auditors do ask.

In short, the breakdown voltage test on power transformer oil is still your fastest early-warning signal. Keep the cup clean, the gap honest, and the paperwork tight.
