Transformer Oil Testing, Up Close: PS-1001D and the reality of oil BDV

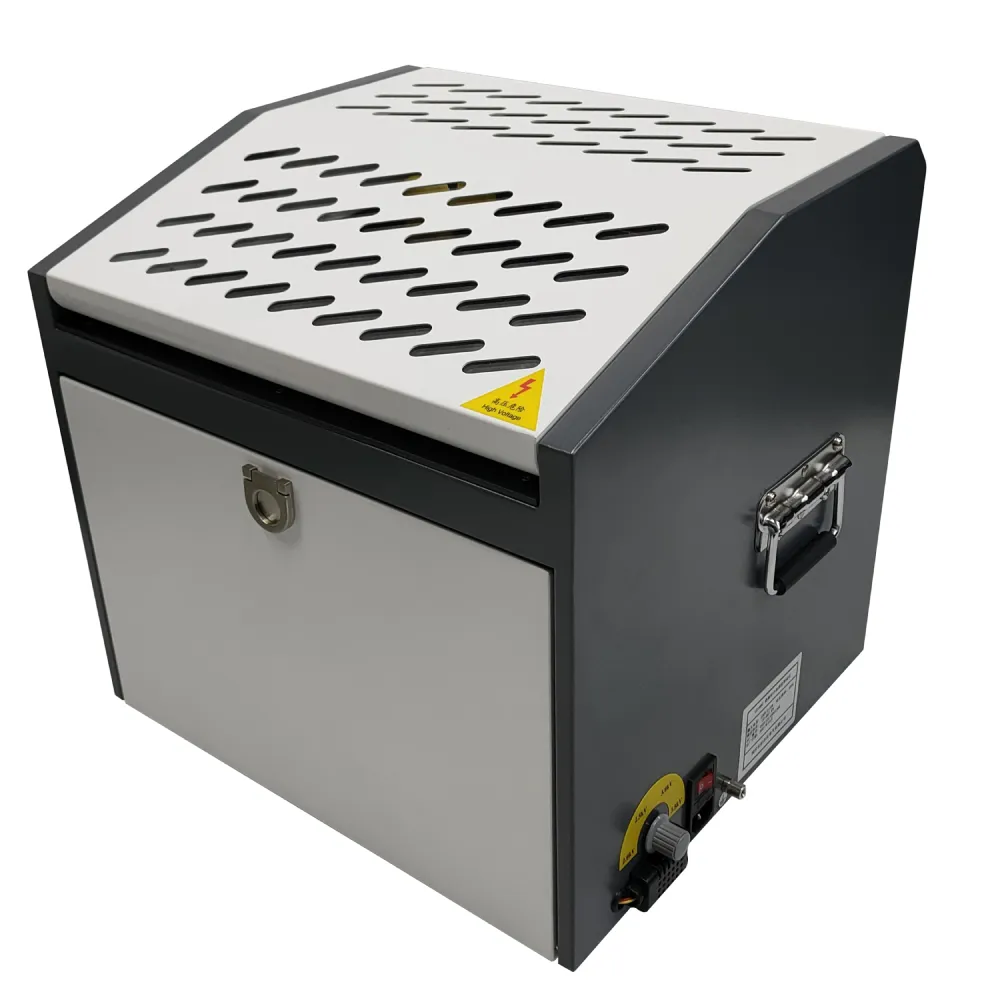

If you maintain transformers for a living, you already obsess over oil bdv—breakdown voltage—because it quietly predicts insulation health. PUSH Electrical’s PS-1001D is one of those bench instruments you end up using daily without thinking too much about it. Black-and-white finish, clean UI, and—more importantly—predictable results. Origin: Room 302, Building 5, Baoding Zhongguancun DigitalEconomy Industrial Park, No. 777 Lixing Street, Jingxiu District, Baoding Hebei Province.

What is oil bdv and why it still matters

BDV is the voltage at which insulating oil electrically breaks down. In practice, it’s a stress-test that tells you how clean, dry, and intact your dielectric fluid is. Industry trend? Utilities and renewables are shifting to condition-based maintenance; data is moving from dusty logbooks to cloud dashboards; and portable testers are getting more automated, safer, and—surprisingly—faster without sacrificing accuracy.

PS-1001D quick specs

How the test really runs (materials, methods, checks)

• Materials: cleaned glass test cell, polished electrodes, fresh lint-free wipes, dry nitrogen (optional degassing), reference oil for verification.
• Method: sample at operating temperature if possible; avoid moisture; set gap (2.5 mm for IEC 60156; 1 mm for ASTM D1816); select ramp rate; run 5–6 breakdowns with pauses and stirring between sequences.
• Testing standards: IEC 60156, ASTM D1816/D877; typical acceptance for new mineral oil is often ≥60 kV (IEC, 2.5 mm) though fleets may set their own thresholds.
• Test data example: New uninhibited mineral oil: 65–75 kV; aged oil with moisture: 25–45 kV; ester fluids can show different profiles—don’t overcompare across chemistries.
• Industries: utilities, wind/solar transformers, data centers, rail traction, steel mills, EPCs, and oil-filled HV test labs.

Where oil bdv numbers pay off

Use it before energization, after maintenance, or when DGA flags moisture/aging. Many customers say the PS-1001D’s repeatability makes trending less noisy—useful when budgets force longer intervals between oil processing. To be honest, I like that it doesn’t fight you: lid down, profile chosen, go.

Vendor snapshot (apples-to-apples-ish)

Customization and certifications

Options usually include electrode kits, custom ramp/pause profiles, localized report language, and calibration fixtures. Certifications: CE, ISO 9001 QA; compliance with IEC 61010 safety; traceable calibration certificates on request. It seems labs appreciate the paper trail.

A quick case

A wind substation had oil bdv trending down from 58 kV to 43 kV in three months. PS-1001D confirmed moisture ingress; vacuum dehydration and filtration brought it back to 62 kV, leakage current stabilized, and partial discharge nuisance alarms vanished. Simple, measurable, done.

Customer feedback? “Less fiddling with settings,” “reports that pass audits,” and—actually—“looks good on the bench” comes up more than you’d expect.

Testing tips I keep taped to the lid

• Clean and dry everything—moisture ruins oil bdv faster than anything.
• Standard first, opinion later. Use IEC 60156 or ASTM D1816/D877 as written.
• Trend, don’t chase a single number; look for drift.

References

1. IEC 60156: Insulating liquids—Determination of the breakdown voltage at power frequency.
2. ASTM D1816: Standard Test Method for Dielectric Breakdown Voltage of Insulating Liquids Using VDE Electrodes.
3. ASTM D877: Standard Test Method for Dielectric Breakdown Voltage of Insulating Liquids Using Disk Electrodes.
4. IEC 61010-1: Safety requirements for electrical equipment for measurement, control, and laboratory use.
