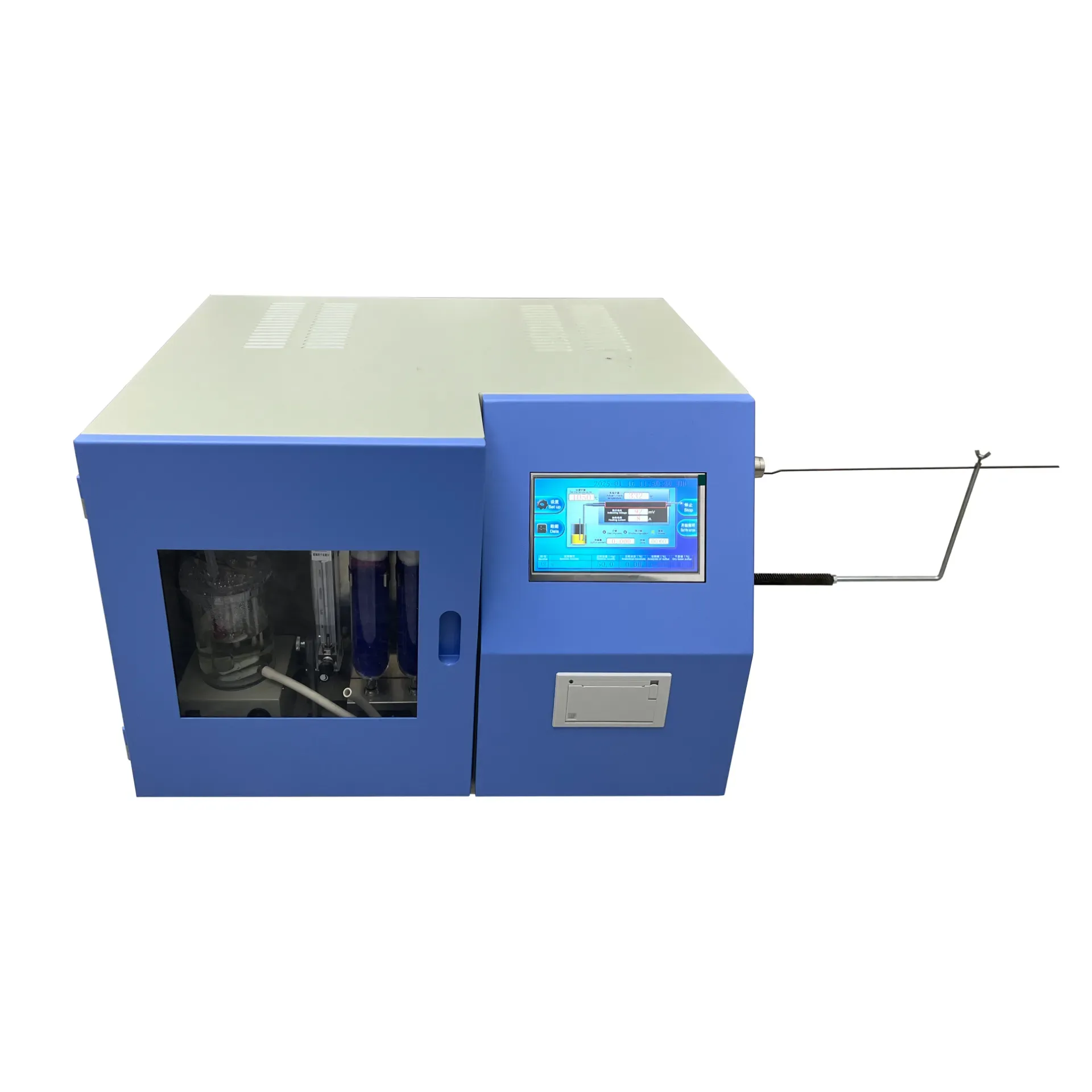

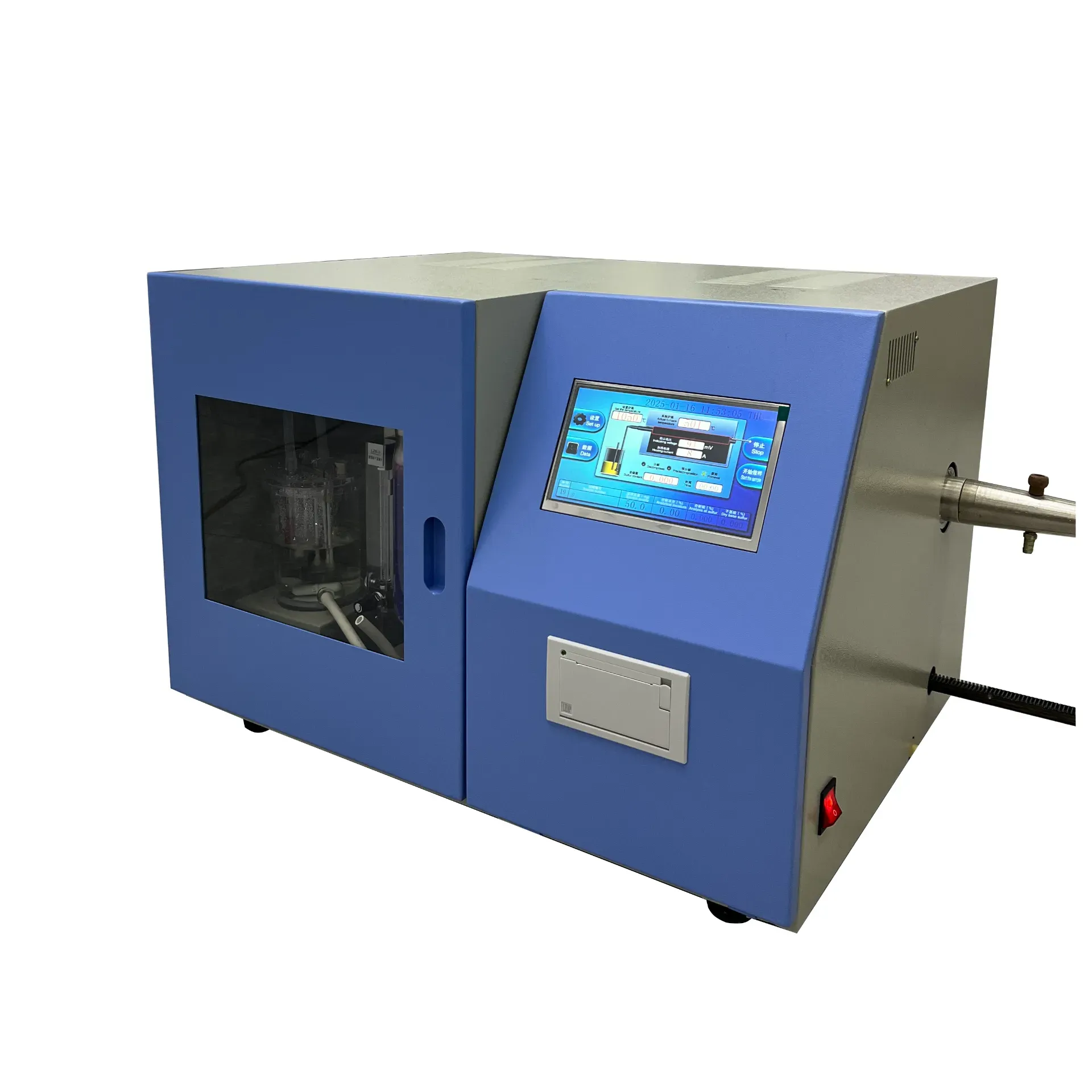

Advanced Sulfur Content Tester for Precision Coal Analysis

For laboratories requiring precise and efficient sulfur content analysis in coal, the Sulfur Content Tester from Baoding Push Electrical Appliance Manufacturing Co., Ltd. offers a cutting-edge solution. This device combines advanced technology with user-friendly design to meet the rigorous demands of modern coal analysis. Below, we explore its key features, technical specifications, and applications, supported by authoritative references from the National Institute of Standards and Technology (NIST).

Key Features of the Sulfur Content Tester

The Sulfur Content Tester is engineered with several innovative features that enhance its performance and usability:

• Friendly Human-Machine Interface:The device features a simple keyboard operation and intuitive display, making it easy for users to learn and operate. This design reduces the learning curve and ensures efficient workflow in laboratory settings.
• Advanced Temperature Control:Utilizing PID (Proportional-Integral-Derivative) control, the furnace temperature is maintained with high accuracy (1150±5℃). This precision protects the silicon carbide tube and extends its service life, ensuring consistent performance over time.
• Intelligent Electrolysis Management:The instrument intelligently controls the on/off of the electrolysis switch, preventing over-electrolysis and ensuring reliable results. This feature is critical for maintaining the integrity of the titration process.
• Real-Time Monitoring:Users can monitor key parameters such as furnace temperature, flow rate, voltage, and sulfur content during the test. This transparency allows for immediate adjustments and enhances the overall testing process.
• Automated Titration Endpoint Detection:The device automatically determines the titration endpoint, significantly reducing experimental time and improving work efficiency. This automation minimizes human error and ensures consistent results.
• Data Storage and Retrieval:The instrument can store the latest 100 historical records, which can be printed at any time. This feature is invaluable for data tracking and compliance with regulatory requirements.
•

Technical Specifications

Analysis Principle

The Sulfur Content Tester operates on the principle of coulometric titration, as outlined in NIST standards for analytical chemistry. Here's a detailed breakdown of the process:

1. Sample Combustion:A coal sample is burned in a purified air flow at a high temperature of 1150℃. This process decomposes all forms of sulfur into sulfur dioxide (SO₂).
2. Gas Transport:The SO₂ is carried by the air flow to the electrolytic cell, where it reacts with water to form sulfurous acid (H₂SO₃).
3. Electrolysis:The reaction disrupts the equilibrium of iodide-iodine ions in the electrolytic cell. The instrument generates current to electrolyze potassium iodide, producing iodine to restore the balance.
4. Measurement:The microprocessor measures the current required to restore the equilibrium, directly correlating to the sulfur content in the sample. This data is then processed to calculate the total sulfur content.

This method aligns with the NIST guidelines for precision and accuracy in chemical analysis, ensuring reliable results that meet national standards.

Applications in Industry and Research

The Sulfur Content Tester is widely applicable in various sectors, including:

• Coal Quality Control:Laboratories use this device to determine sulfur content in coal, a critical parameter for assessing environmental impact and compliance with emissions regulations.
• Environmental Monitoring:The tester helps in monitoring sulfur emissions from industrial processes, supporting efforts to reduce air pollution and meet regulatory standards.
• Academic Research:Researchers utilize the device for studies on coal composition, combustion efficiency, and the development of cleaner energy technologies.
• Manufacturing Quality Assurance:Industries rely on the tester to ensure the consistency and quality of coal-based products, optimizing production processes.
•

Company Background: Baoding Push Electrical Appliance Manufacturing Co., Ltd.

Baoding Push Electrical Appliance Manufacturing Co., Ltd. is a leading manufacturer of analytical instruments, specializing in sulfur content testers and related equipment. With a commitment to innovation and quality, the company has established itself as a trusted name in the field of coal analysis. Their products are designed to meet the highest standards of accuracy and reliability, making them a preferred choice for laboratories worldwide.

Conclusion

The Sulfur Content Tester from Baoding Push Electrical Appliance Manufacturing Co., Ltd. represents a significant advancement in coal analysis technology. Its combination of precision, automation, and user-friendly design makes it an indispensable tool for laboratories and industries requiring accurate sulfur content measurements. By adhering to NIST standards, the device ensures results that are both reliable and compliant with national regulations.
