Circuit Breaker Analyzers: Ensuring Safety and Efficiency

Circuit breakers play a critical role in safeguarding electrical systems by interrupting power during overloads or short circuits. However, like any mechanical device, they require regular testing and maintenance to function reliably. This is where tools like the circuit breaker analyzer and breaker tester become essential. In this article, we’ll explore their functionality, benefits, and pricing while providing insights into how they contribute to the safety and efficiency of electrical systems.

What Is a Circuit Breaker Analyzer?

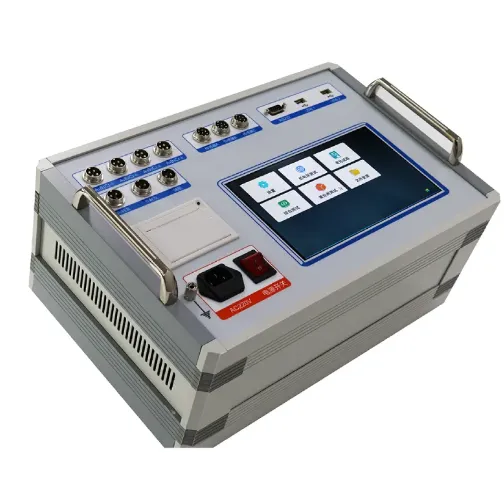

A circuit breaker analyzer is a specialized device designed to test and evaluate the performance of circuit breakers. It measures various parameters, such as opening and closing times, contact resistance, and mechanical motion, ensuring the breaker operates effectively during electrical faults. This tool is indispensable for professionals maintaining high-voltage equipment in industrial or utility settings.

Key Features of a Circuit Breaker Analyzer

Timing Analysis

1. Measures the time it takes for a breaker to trip or close in response to a fault.
2. Ensures the breaker meets required standards for rapid fault interruption.

Contact Resistance Measurement

1. Evaluates the electrical resistance of circuit breaker contacts.
2. Identifies wear or contamination that could hinder electrical flow.

Motion Analysis

1. Monitors the speed and displacement of moving parts within the breaker.
2. Detects potential mechanical faults that may impair performance.

Multi-Pole Synchronization Testing

1. Verifies the simultaneous operation of all poles in multi-pole breakers.
2. Prevents imbalances in fault isolation.

Data Recording and Analysis

1. Records test results for detailed analysis and long-term tracking of breaker performance trends.

Breaker Tester: A Simpler Alternative

For less comprehensive testing needs, a breaker tester offers a simpler and more portable solution. It is primarily used for routine maintenance checks, focusing on basic parameters like insulation resistance, continuity, and tripping current. While not as advanced as an analyzer, a breaker tester is an excellent choice for electricians and smaller facilities needing basic diagnostic capabilities.

Why Regular Testing Matters

Circuit breakers are the first line of defense in electrical systems. Testing them regularly using tools like a circuit breaker analyzer or breaker tester provides several benefits:

Enhanced System Reliability

1. Prevents unexpected failures by identifying issues before they escalate.
2. Keeps systems running smoothly and reduces downtime.

Improved Safety

1. Ensures circuit breakers respond promptly during overloads or faults, protecting personnel and equipment.

Cost Savings

1. Detecting issues early reduces repair costs and avoids expensive replacements.

Regulatory Compliance

1. Meets industry standards for safety and reliability, avoiding fines or operational shutdowns.

When to Use a Circuit Breaker Analyzer vs. a Breaker Tester

Choosing between a circuit breaker analyzer and a breaker tester depends on the complexity of your testing requirements:

How Much Does a Circuit Breaker Analyzer Cost?

The cost of a circuit breaker analyzer can vary widely based on features and intended use:

Basic Models: $3,000–$5,000
Suitable for smaller facilities with minimal testing needs.

Mid-Range Models: $5,000–$10,000
Offers additional features like motion analysis and data logging for more comprehensive testing.

High-End Models: $10,000–$20,000+
Designed for industrial use, these analyzers are equipped with advanced diagnostic tools and multi-pole testing capabilities.

A breaker tester, by comparison, is significantly less expensive, typically ranging from $500 to $2,000, making it a cost-effective option for smaller-scale operations.

Best Practices for Circuit Breaker Testing

Schedule Routine Checks

• Test circuit breakers at regular intervals to catch problems early.

Follow Manufacturer Guidelines

• Use testing tools compatible with your circuit breaker specifications.

Keep Records

• Maintain detailed records of test results to track performance over time.

Invest in Training

• Ensure technicians are trained to use analyzers and testers correctly for accurate results.

Regular testing of circuit breakers is essential for the safety and efficiency of electrical systems. Whether you need a comprehensive circuit breaker analyzer for detailed diagnostics or a straightforward breaker tester for routine checks, investing in the right tool ensures reliability and peace of mind. While the upfront costs may vary, the long-term benefits of enhanced safety, reduced downtime, and compliance with standards make these devices invaluable for any facility handling electrical equipment.
