Dc Insulation Tester is a key solution in the instrumentation and meters industry, specifically within Electrical Instruments and Electrical testing equipment. This article explores how Baoding Push Electrical Appliance Manufacturing Co., Ltd. supports professionals with durable, high-performance products, and explains why this product is an ideal choice for businesses in these sectors.

Table of Contents

• Dc Insulation Tester Overview
• Benefits & Use Cases of Dc Insulation Tester in Electrical testing equipment
• Cost, Maintenance & User Experience
• Sustainability & Market Trends in instrumentation and meters
• Conclusion on Dc Insulation Tester from Baoding Push Electrical Appliance Manufacturing Co., Ltd.

Dc Insulation Tester Overview

A Dc Insulation Tester (often called a megohmmeter) applies a controlled DC voltage to measure insulation resistance across cables, windings, and switchgear, providing numerical insight into dielectric health. For B2B decision makers responsible for uptime, it is a frontline diagnostic in Electrical Instruments—verifying installation quality, scheduling maintenance, and preventing catastrophic failures. Typical professional units offer multiple test voltages (e.g., 250 V to a high voltage tester 5kV range), guard terminals to mitigate surface leakage, and calculated indices such as PI and DAR for trending over time.

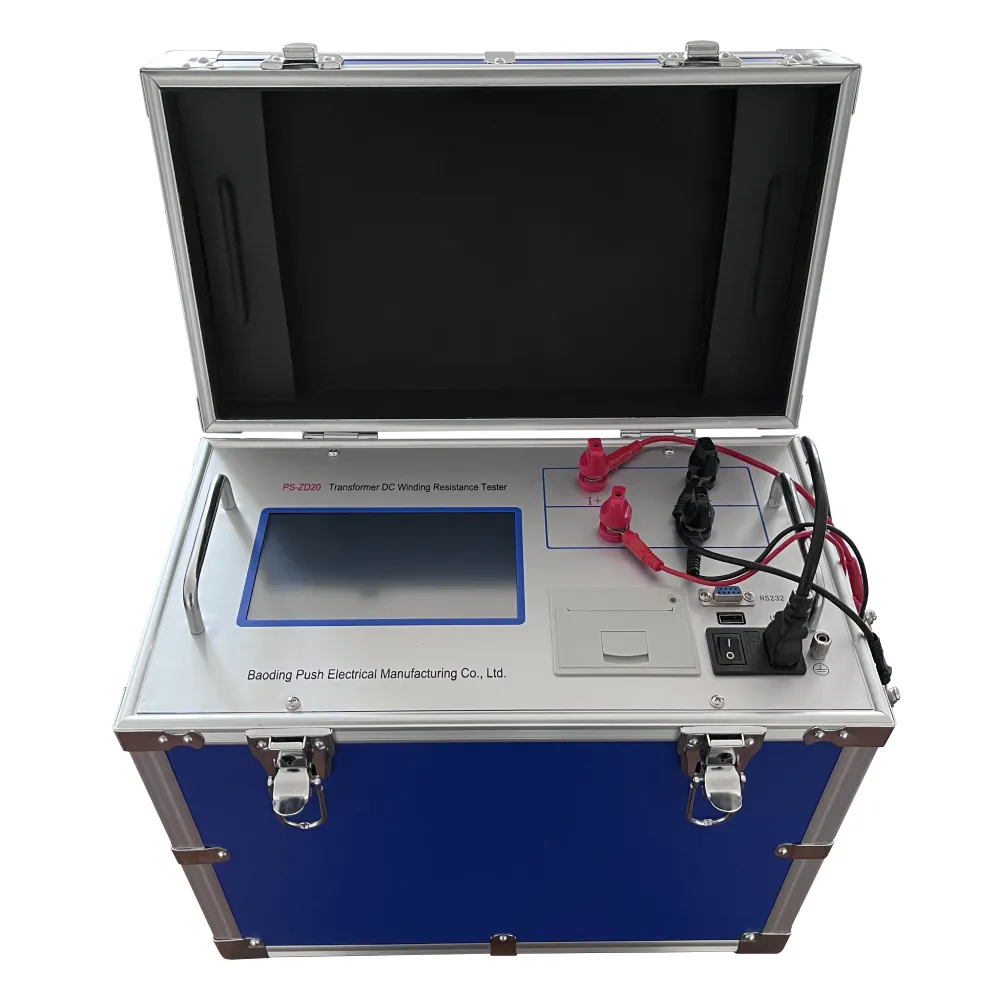

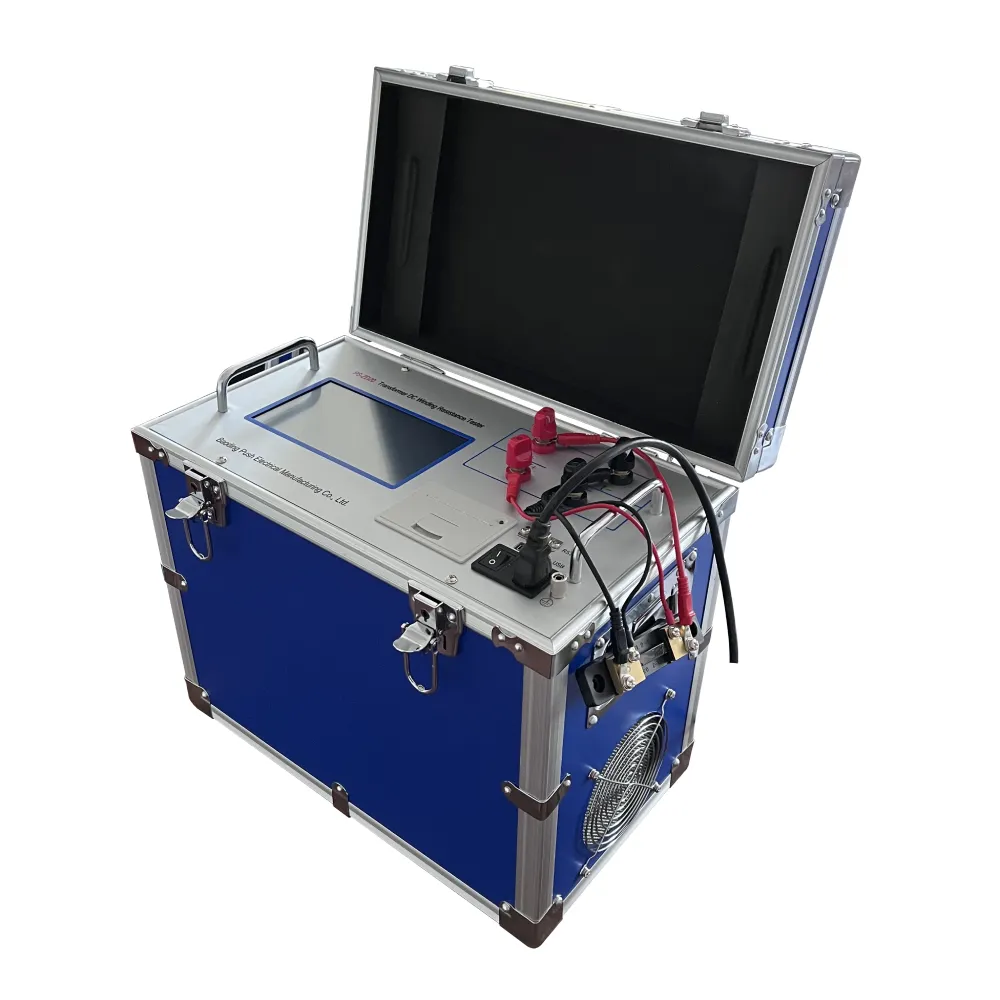

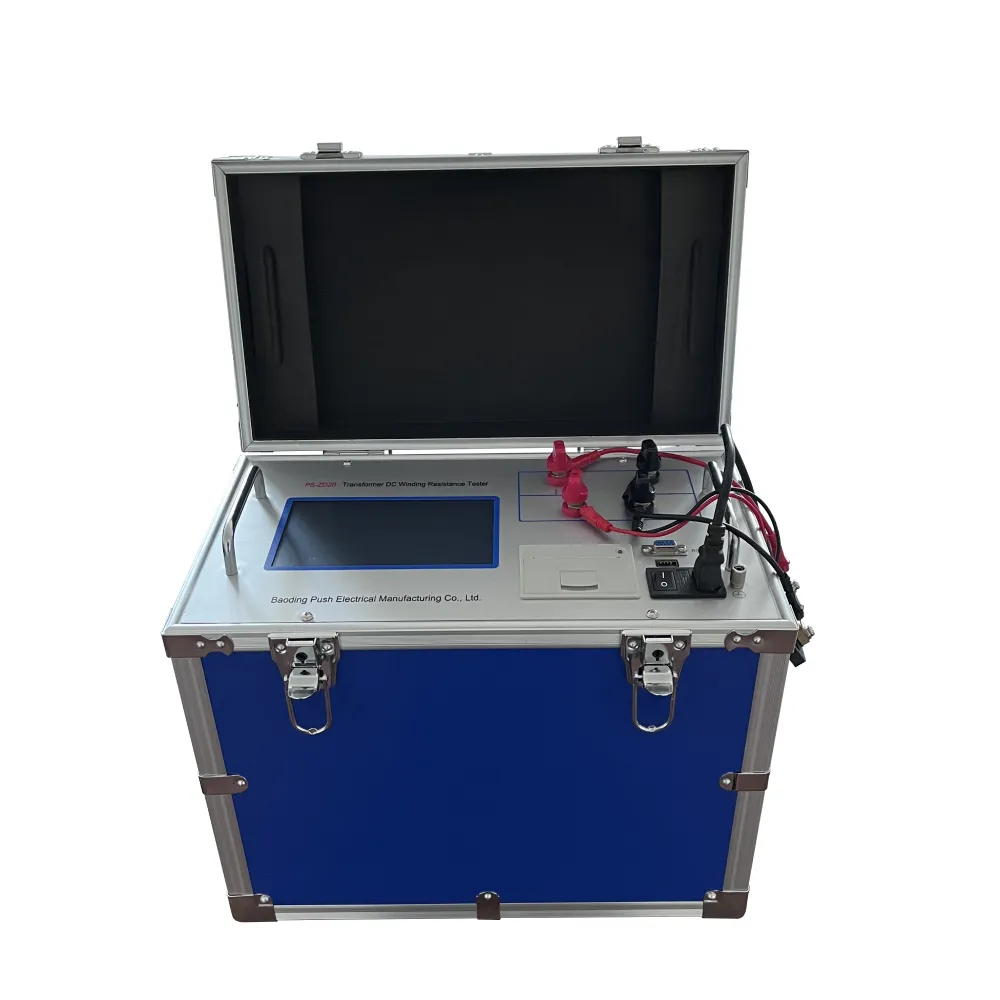

Insulation testing is complemented by resistance measurements. In transformers, a dc resistance tester enables quick validation of the copper circuit integrity, while a dc winding resistance tester supports acceptance testing, diagnostics, and post-repair verification. The dc winding resistance test of transformer windings helps identify turn-to-turn issues, poor joints, and tap changer defects. Baoding Push Electrical Appliance Manufacturing Co., Ltd. (PUSH) manufactures field-proven instruments across these categories. An example is the PS-ZD20 20A transformer dc winding resistance tester, which streamlines the dc winding resistance test process and reflects the company’s engineering depth and attention to measurement stability, safety, and speed.

Benefits & Use Cases of Dc Insulation Tester in Electrical testing equipment

Across utilities, EPCs, and OEMs, Dc Insulation Tester units are deployed on power cables, MV/HV switchgear, motors/generators, bus ducts, and instrument transformers. In substations, 1 kV–5 kV ranges verify primary equipment before energization, while in rotating machines, IEEE 43 methodologies guide insulation trend analysis. For transformers, combining an insulation resistance check with a dc resistance test of transformer windings provides a holistic snapshot of dielectric and conductor health, minimizing rework and site delays.

Key advantages include high measurement ranges (GΩ to TΩ), stable output across test voltages, automatic discharge for user safety, and data logging for traceability. When paired with PUSH’s transformer dc winding resistance tester portfolio, teams gain end-to-end coverage: insulation condition from the Dc Insulation Tester and conductor continuity from the dc winding resistance tester. Baoding Push Electrical Appliance Manufacturing Co., Ltd. brings deep application expertise from grid, rail, and industrial projects, aligning features—like robust test leads, clear UI, and reliable power management—to the realities of field work. This blended toolkit reduces troubleshooting time, strengthens QA, and standardizes procedures across geographically distributed teams.

Cost, Maintenance & User Experience

Total cost of ownership for Dc Insulation Tester solutions hinges on durability, calibration intervals, and test efficiency. PUSH emphasizes rugged enclosures, reliable output regulation, and clear pass/fail criteria to shorten on-site time and reduce retests. For transformer maintenance teams, coupling insulation checks with a 20 A transformer dc winding resistance tester can cut diagnostic windows significantly, particularly after repair or tap-changer service. Fewer site visits, faster commissioning, and reduced unplanned outages translate to strong ROI within the first year for many asset-intensive operations.

Customer feedback from Electrical Instruments users highlights three consistent wins: (1) predictable measurement stability across temperature and humidity, (2) intuitive workflows that guide operators through insulation and dc winding resistance procedures, and (3) dependable after-sales support. Field engineers value automatic discharge, protective circuitry, and clear indications when handling a high voltage tester 5kv scenario. Procurement teams appreciate life-cycle support—spare parts, calibration services, and documentation—streamlining compliance and corporate governance requirements.

Sustainability & Market Trends in instrumentation and meters

Global momentum toward electrification and grid modernization is accelerating demand for reliable Electrical testing equipment. Standards such as IEC 60364-6 for installations and IEEE 43 for rotating machines reinforce the importance of insulation testing, while transformer guides (e.g., IEC 60076 series) underscore the value of the dc winding resistance test of transformer windings for condition-based maintenance. Digital workflows—asset tagging, cloud reporting, and fleet analytics—are becoming standard as enterprises seek traceable QA and predictive maintenance insights.

Baoding Push Electrical Appliance Manufacturing Co., Ltd. aligns with sustainability by prioritizing energy-efficient designs, long product life cycles, and serviceability to reduce e-waste. Robust components and repair-friendly architectures extend instrument life, while eco-conscious packaging and responsible sourcing support ESG goals. With a portfolio spanning Dc Insulation Tester options up to 5 kV and complementary dc resistance tester platforms, PUSH helps organizations reduce risk, optimize maintenance intervals, and meet compliance targets without sacrificing operational efficiency.

Conclusion on Dc Insulation Tester from Baoding Push Electrical Appliance Manufacturing Co., Ltd.

A Dc Insulation Tester is indispensable for verifying dielectric integrity across modern power assets, and its value multiplies when combined with dc resistance testing for a complete transformer and equipment health picture. Baoding Push Electrical Appliance Manufacturing Co., Ltd. stands out with dependable instruments—spanning Dc Insulation Tester models and transformer dc winding resistance tester solutions—that deliver speed, safety, and actionable data for B2B teams. Contact us: email: sales@oil-tester.com. Visit our website: https://www.pushtester.com
