Introduction

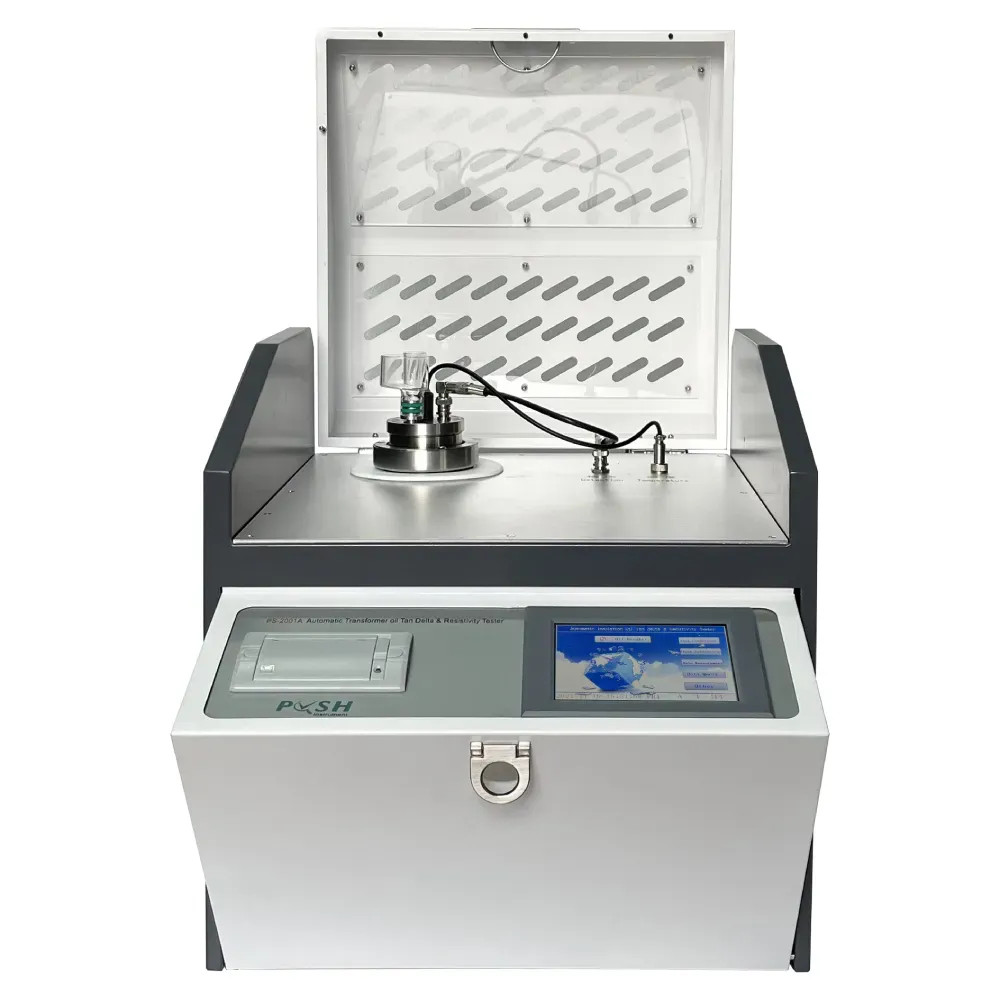

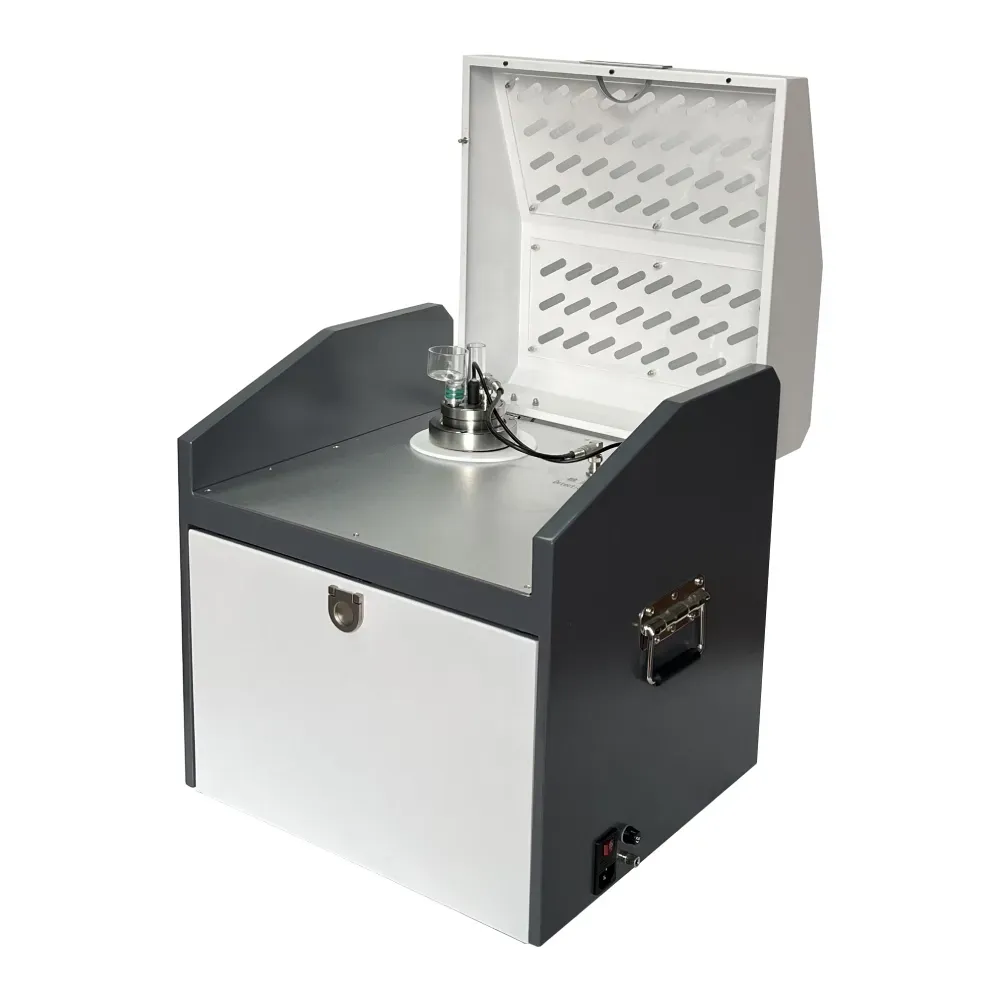

The PS-2000A Insulating Oil Dielectric Loss and Volume Resistivity Tester is a cutting-edge instrument designed for the accurate measurement of dielectric loss and volume resistivity in insulating oils. This device combines high automation with advanced technological features to ensure reliable and precise results. Developed by Baoding Push Electrical Appliance Manufacturing Co., Ltd., the PS-2000A adheres to international standards such as ASTM D924 and GB/5654, making it a trusted tool in the electrical industry.

Resistivity Tester - Explore the latest in electrical resistivity measurement technology.

Key Features and Advantages

The PS-2000A stands out due to its comprehensive features and user-friendly design. Here are some of its standout advantages:

• High Automation: The device automates the entire process, from heating to measuring dielectric loss and resistivity, significantly reducing manual intervention and potential errors.
• Three-Electrode Structure: Compliant with GB/T 5654-2007, this design ensures an inter-electrode spacing of 2mm, minimizing stray capacitance and leakage effects that could skew results.
• Advanced Heating Technology: Utilizing medium-frequency induction heating with a PID temperature control algorithm, the PS-2000A ensures uniform heating and precise temperature regulation within ±0.5°C.
• DSP and FFT Technology: These technologies guarantee the stability, accuracy, and reliability of data, making the PS-2000A a dependable choice for critical applications.
• Internal Standard Capacitor: The SF6-charged three-pole capacitor ensures that dielectric loss and capacitance measurements remain unaffected by environmental factors like temperature and humidity.
• Large Color Touchscreen: The intuitive interface allows for easy operation and clear visualization of test results, enhancing user experience.
• Safety Features: The device includes a high-voltage electrode cup short reminder when the lid is open, ensuring the safety of both operators and equipment.
• Data Management: With the ability to store 100 sets of measurement data, the PS-2000A supports real-time clock functionality for date and time-stamped results.
• Calibration Function: The empty electrode cup correction function automatically measures capacitance and dielectric loss, ensuring accurate calculations over time.

Volume Resistivity Tester - Explore precision in measuring electrical resistance of insulating materials.

Technical Specifications

Applications

The PS-2000A is widely used in various industries where insulating oil quality is critical. Key applications include:

• Transformer Oil Testing: Ensures the dielectric properties of transformer oils meet safety and performance standards.
• Power Equipment Maintenance: Regular testing of insulating oils in power transformers and switchgear to prevent failures.
• Research and Development: Supports the development of new insulating materials and oils with precise measurement capabilities.
• Quality Control: Enables manufacturers to maintain consistent product quality by monitoring dielectric loss and resistivity.
• Field Testing: Portable design allows for on-site testing, reducing downtime and improving operational efficiency.
•

Company Background

Baoding Push Electrical Appliance Manufacturing Co., Ltd. is a leading manufacturer of electrical testing equipment with a strong commitment to innovation and quality. The company specializes in developing high-precision instruments for the electrical and power industries. With a focus on international standards, Baoding Push ensures its products meet the rigorous demands of global markets.

For more information about the company, visit their official website.

Conclusion

The PS-2000A Insulating Oil Dielectric Loss and Volume Resistivity Tester is a versatile and reliable solution for measuring the electrical properties of insulating oils. Its advanced features, such as three-electrode structure, medium-frequency heating, and DSP technology, ensure accuracy and efficiency in testing. Whether used in power plants, manufacturing facilities, or research laboratories, the PS-2000A sets a new standard for electrical testing equipment.
