Discover the advanced technology behind the PS-1003, a cutting-edge solution for insulating oil testing.





Introduction

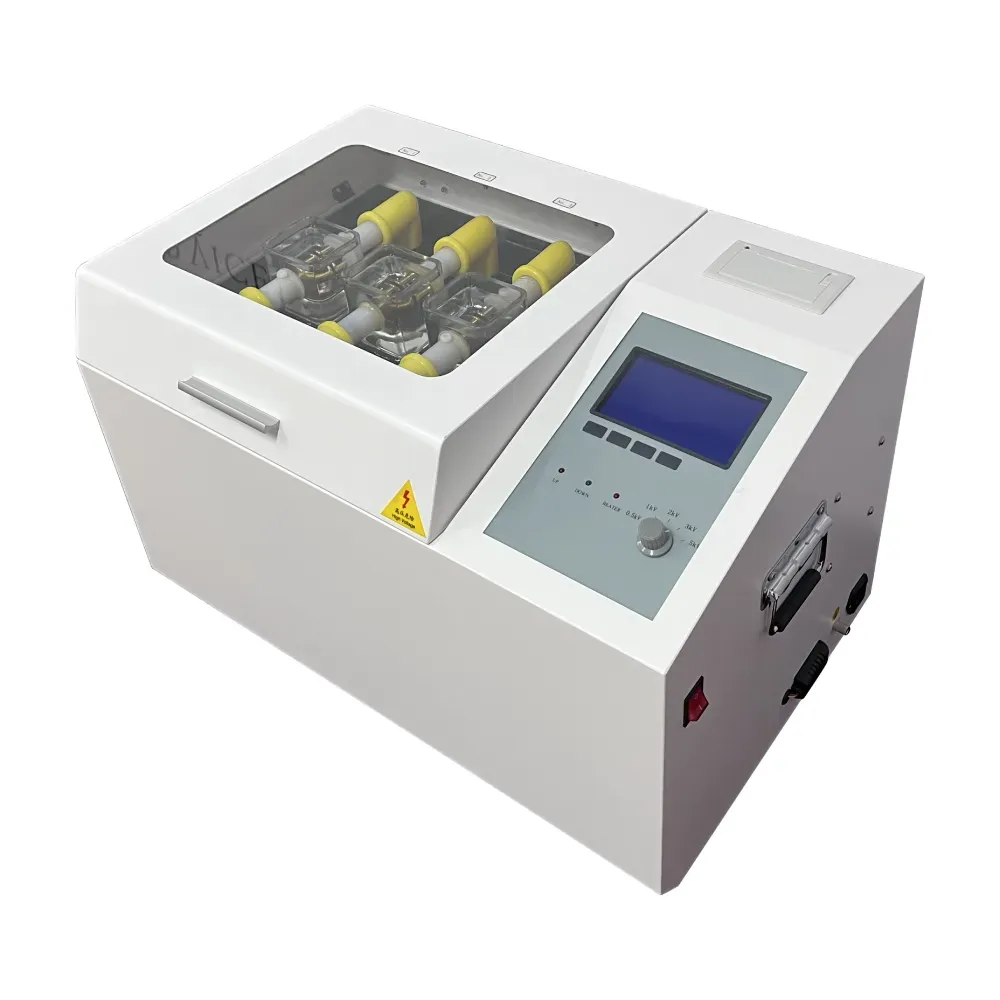

The PS-1003 Three-Cup Insulating Oil Dielectric Strength Tester is a specialized instrument designed to measure the dielectric strength of insulating oils. This device is critical for ensuring the safety and reliability of electrical systems, particularly in transformers and other high-voltage equipment. Developed by Baoding Push Electrical Appliance Manufacturing Co., Ltd., the PS-1003 combines advanced technology with user-friendly features to deliver accurate and efficient testing solutions.



Product Overview

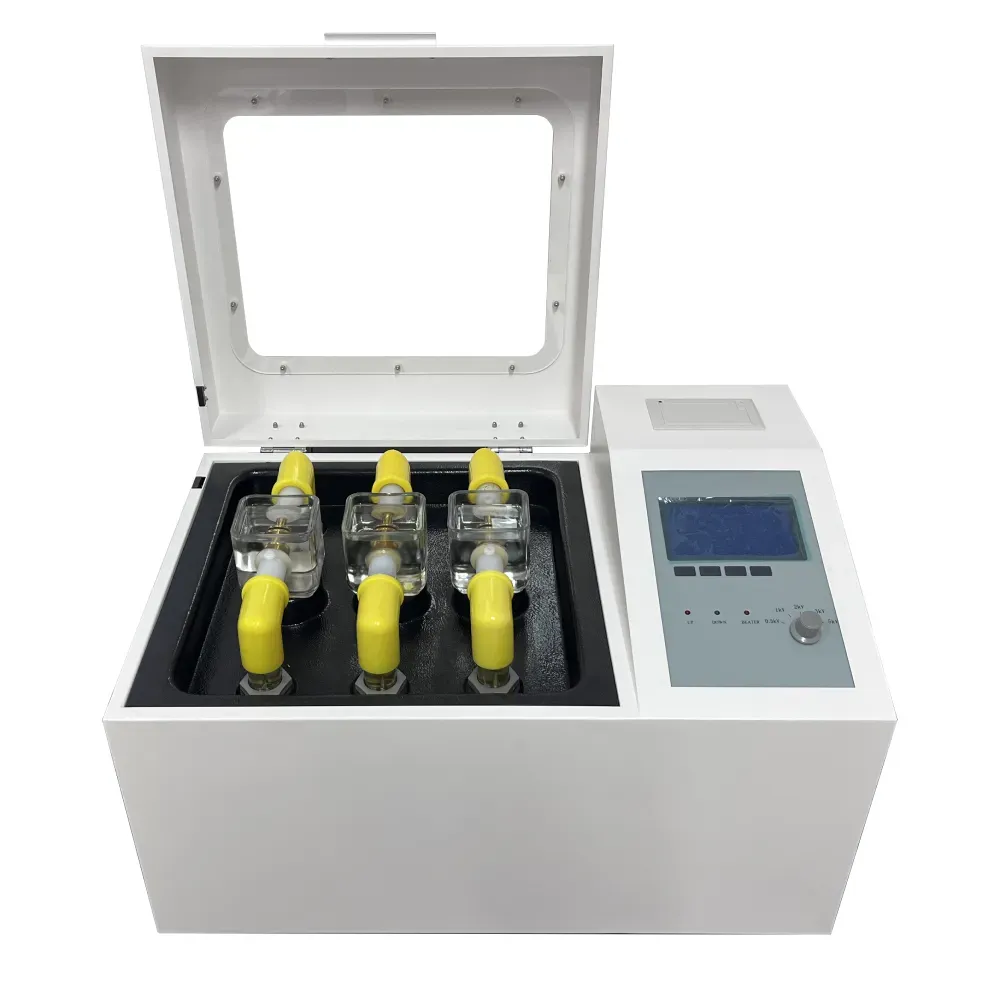

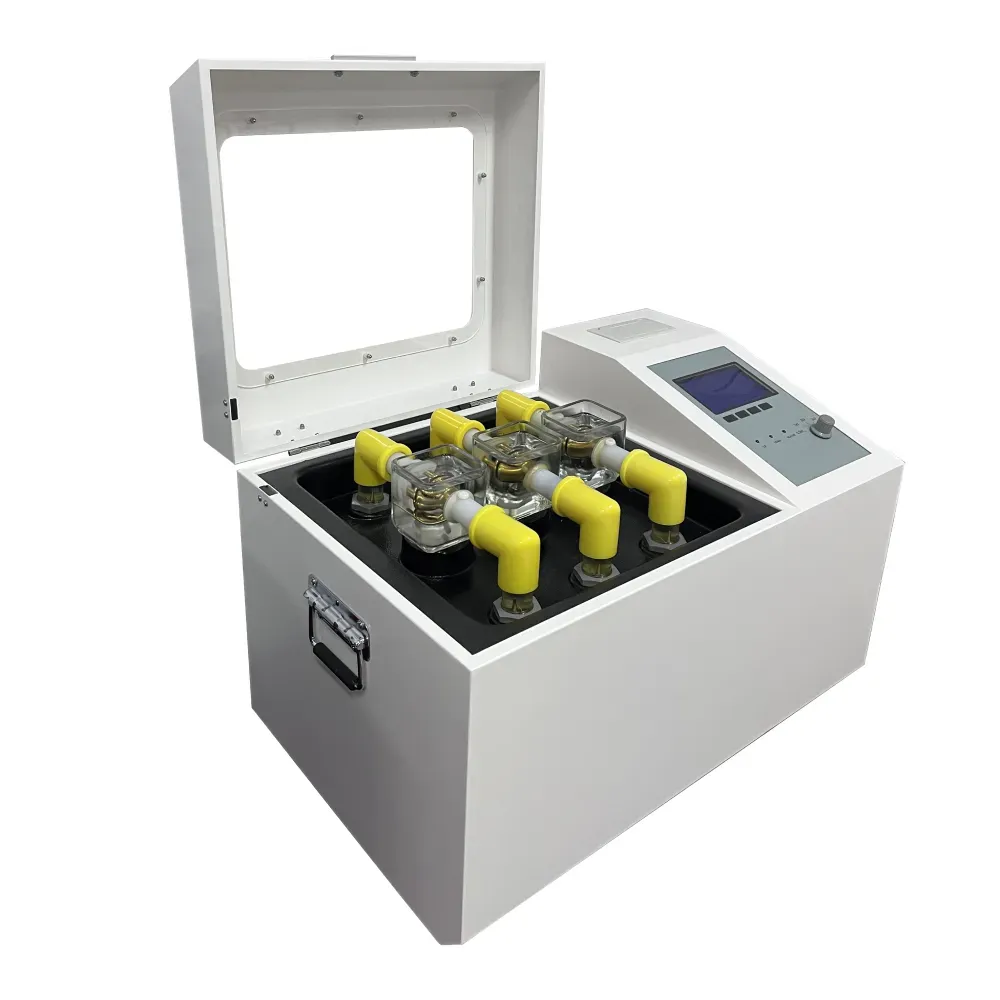

The PS-1003 is a three-cup dielectric strength tester that allows users to test three oil samples simultaneously, significantly improving efficiency. This feature is particularly beneficial in industrial settings where time and resource optimization are crucial. The device is equipped with a 5.4-inch LCD display, providing clear and intuitive operation through a Chinese menu interface. It also includes temperature and humidity measurement functions, ensuring that environmental conditions are monitored during testing.



One of the standout features of the PS-1003 is its automated operation. The instrument can automatically perform tasks such as lifting, holding, stirring, static setting, calculation, data storage, and printing. This automation reduces the potential for human error and streamlines the testing process. Additionally, the device has a power loss and storage function, ensuring that test results are saved automatically in case of unexpected power outages.





Technical Specifications



The PS-1003 is built to meet the highest standards of precision and reliability. Below is a detailed table outlining its technical specifications:



Parameter	Specifications
Output Voltage	0–80 kV (0–100 kV can be set)
THD (Total Harmonic Distortion)	＜1%
Pressure Rate	2.0–3.5 kV/s (Δ = 0.5 kV/s)
Booster Capacity	1.5 kVA
Measurement Accuracy	±2%
Supply Voltage	AC 220 V ±10%
Power Frequency	50 Hz ±2%
Power	200 W
Applicable Temperature	0–45℃
Applicable Humidity	＜85% RH
Dimensions	410×390×375 mm
Net Weight	~32 kg



These specifications highlight the PS-1003's capability to handle a wide range of testing scenarios while maintaining high accuracy and stability. The device's dual CPU and PLC control system ensures robust performance, making it suitable for both laboratory and field applications.





Key Features and Advantages



The PS-1003 is equipped with several advanced features that set it apart from traditional dielectric strength testers. One of its unique functions is the waveform setting capability, which minimizes harmonic interference and ensures precise measurements. This feature is particularly important in environments where electrical noise could affect test results.



Another notable advantage is the device's comprehensive safety mechanisms. The PS-1003 includes overvoltage, overcurrent, limit, and grounding alarms, which protect both the operator and the equipment from potential hazards. These safety features are essential for maintaining a secure testing environment, especially in high-voltage applications.



The PS-1003 also supports modern data transmission methods, including a 232 interface and Bluetooth connectivity. This allows for seamless data transfer to computers and other devices, facilitating efficient data management and analysis. The ability to print and store test results further enhances the device's utility in research and industrial settings.





Applications and Use Cases



The PS-1003 is designed for a wide range of applications, particularly in the testing of insulating oils used in electrical equipment. Its three-cup configuration allows for simultaneous testing of three oil samples, making it ideal for laboratories and industrial facilities that require high throughput. The device is commonly used in the maintenance and quality control of transformers, where the dielectric strength of the oil is a critical factor in ensuring operational safety.



Additionally, the PS-1003 is suitable for research and development environments, where precise and reliable measurements are essential. The device's ability to measure dielectric strength in accordance with standards such as ASTM D1816 and ASTM D877 ensures that test results meet industry requirements. This compliance is crucial for manufacturers and service providers who must adhere to strict regulatory standards.



The PS-1003's versatility extends to its electrode options. It includes flat, spherical, and hemispherical electrodes, allowing users to customize the testing setup according to their specific needs. This adaptability makes the device suitable for a variety of testing scenarios, from routine inspections to specialized research projects.



Company Background: Baoding Push Electrical Appliance Manufacturing Co., Ltd.



Baoding Push Electrical Appliance Manufacturing Co., Ltd. is a leading manufacturer of electrical testing equipment, with a strong reputation for innovation and quality. The company specializes in the design and production of dielectric strength testers, including the PS-1003 Three-Cup Insulating Oil Dielectric Strength Tester. With a commitment to excellence, Baoding Push Electrical Appliance has established itself as a trusted provider of solutions for the electrical industry.



Founded on principles of precision engineering and customer-centric （PS-1003 Three-Cup Insulating Oil Dielectric Strength Tester



Discover the advanced technology behind the PS-1003, a cutting-edge solution for insulating oil testing.



Introduction



The PS-1003 Three-Cup Insulating Oil Dielectric Strength Tester is a specialized instrument designed to measure the dielectric strength of insulating oils. This device is critical for ensuring the safety and reliability of electrical systems, particularly in transformers and other high-voltage equipment. Developed by Baoding Push Electrical Appliance Manufacturing Co., Ltd., the PS-1003 combines advanced technology with user-friendly features to deliver accurate and efficient testing solutions.



Product Overview



The PS-1003 is a three-cup dielectric strength tester that allows users to test three oil samples simultaneously, significantly improving efficiency. This feature is particularly beneficial in industrial settings where time and resource optimization are crucial. The device is equipped with a 5.4-inch LCD display, providing clear and intuitive operation through a Chinese menu interface. It also includes temperature and humidity measurement functions, ensuring that environmental conditions are monitored during testing.



One of the standout features of the PS-1003 is its automated operation. The instrument can automatically perform tasks such as lifting, holding, stirring, static setting, calculation, data storage, and printing. This automation reduces the potential for human error and streamlines the testing process. Additionally, the device has a power loss and storage function, ensuring that test results are saved automatically in case of unexpected power outages.



Technical Specifications



The PS-1003 is built to meet the highest standards of precision and reliability. Below is a detailed table outlining its technical specifications:



Parameter	Specifications
Output Voltage	0–80 kV (0–100 kV can be set)
THD (Total Harmonic Distortion)	＜1%
Pressure Rate	2.0–3.5 kV/s (Δ = 0.5 kV/s)
Booster Capacity	1.5 kVA
Measurement Accuracy	±2%
Supply Voltage	AC 220 V ±10%
Power Frequency	50 Hz ±2%
Power	200 W
Applicable Temperature	0–45℃
Applicable Humidity	＜85% RH
Dimensions	410×390×375 mm
Net Weight	~32 kg



These specifications highlight the PS-1003's capability to handle a wide range of testing scenarios while maintaining high accuracy and stability. The device's dual CPU and PLC control system ensures robust performance, making it suitable for both laboratory and field applications.



Key Features and Advantages



The PS-1003 is equipped with several advanced features that set it apart from traditional dielectric strength testers. One of its unique functions is the waveform setting capability, which minimizes harmonic interference and ensures precise measurements. This feature is particularly important in environments where electrical noise could affect test results.



Another notable advantage is the device's comprehensive safety mechanisms. The PS-1003 includes overvoltage, overcurrent, limit, and grounding alarms, which protect both the operator and the equipment from potential hazards. These safety features are essential for maintaining a secure testing environment, especially in high-voltage applications.



The PS-1003 also supports modern data transmission methods, including a 232 interface and Bluetooth connectivity. This allows for seamless data transfer to computers and other devices, facilitating efficient data management and analysis. The ability to print and store test results further enhances the device's utility in research and industrial settings.



Applications and Use Cases



The PS-1003 is designed for a wide range of applications, particularly in the testing of insulating oils used in electrical equipment. Its three-cup configuration allows for simultaneous testing of three oil samples, making it ideal for laboratories and industrial facilities that require high throughput. The device is commonly used in the maintenance and quality control of transformers, where the dielectric strength of the oil is a critical factor in ensuring operational safety.



Additionally, the PS-1003 is suitable for research and development environments, where precise and reliable measurements are essential. The device's ability to measure dielectric strength in accordance with standards such as ASTM D1816 and ASTM D877 ensures that test results meet industry requirements. This compliance is crucial for manufacturers and service providers who must adhere to strict regulatory standards.



The PS-1003's versatility extends to its electrode options. It includes flat, spherical, and hemispherical electrodes, allowing users to customize the testing setup according to their specific needs. This adaptability makes the device suitable for a variety of testing scenarios, from routine inspections to specialized research projects.



Company Background: Baoding Push Electrical Appliance Manufacturing Co., Ltd.



Baoding Push Electrical Appliance Manufacturing Co., Ltd. is a leading manufacturer of electrical testing equipment, with a strong reputation for innovation and quality. The company specializes in the design and production of dielectric strength testers, including the PS-1003 Three-Cup Insulating Oil Dielectric Strength Tester. With a commitment to excellence, Baoding Push Electrical Appliance has established itself as a trusted provider of solutions for the electrical industry.



Founded on principles of precision engineering and customer-centric innovation, the company has consistently delivered products that meet the evolving needs of the market. Their expertise in dielectric testing is reflected in the advanced features and robust design of the PS-1003, which is a testament to their dedication to quality and reliability.



Baoding Push Electrical Appliance's focus on research and development ensures that their products remain at the forefront of technological advancements. The company's commitment to continuous improvement and customer satisfaction has earned it a loyal clientele across various industries, including power generation, transmission, and distribution.



Ensuring Accuracy and Safety with NIST Standards



The National Institute of Standards and Technology (NIST) plays a pivotal role in establishing measurement standards that ensure the accuracy and reliability of testing equipment. According to NIST, "Precise measurements are essential for the proper functioning of electrical systems, and adherence to standardized testing procedures is critical for safety and performance" (NIST, 2025). The PS-1003's compliance with ASTM standards such as ASTM D1816 and ASTM D877 aligns with these principles, ensuring that test results are both accurate and consistent.



By integrating NIST-endorsed standards into their design, Baoding Push Electrical Appliance ensures that the PS-1003 meets the highest levels of precision and reliability. This commitment to standardization not only enhances the device's performance but also provides users with confidence in the validity of their test results.



Conclusion



The PS-1003 Three-Cup Insulating Oil Dielectric Strength Tester is a state-of-the-art solution for testing the dielectric strength of insulating oils. Its advanced features, including automated operation, dual CPU control, and comprehensive safety mechanisms, make it an indispensable tool for laboratories and industrial facilities. With its compliance with industry standards and a user-friendly design, the PS-1003 exemplifies the commitment of Baoding Push Electrical Appliance Manufacturing Co., Ltd. to innovation and quality.

For more information about the PS-1003 and other products from Baoding Push Electrical Appliance, visit their official website www.pushtester.com.



References



NIST. (2025). Precision Measurements and Standards. Retrieved from https://www.nist.gov

Baoding Push Electrical Appliance Manufacturing Co., Ltd. (n.d.). PS-1003 Three-Cup Insulating Oil Dielectric Strength Tester. Retrieved from https://www.pushtester.com

innovation, the company has consistently delivered products that meet the evolving needs of the market. Their expertise in dielectric testing is reflected in the advanced features and robust design of the PS-1003, which is a testament to their dedication to quality and reliability.



Baoding Push Electrical Appliance's focus on research and development ensures that their products remain at the forefront of technological advancements. The company's commitment to continuous improvement and customer satisfaction has earned it a loyal clientele across various industries, including power generation, transmission, and distribution.



Ensuring Accuracy and Safety with NIST Standards



The National Institute of Standards and Technology (NIST) plays a pivotal role in establishing measurement standards that ensure the accuracy and reliability of testing equipment. According to NIST, "Precise measurements are essential for the proper functioning of electrical systems, and adherence to standardized testing procedures is critical for safety and performance" (NIST, 2025). The PS-1003's compliance with ASTM standards such as ASTM D1816 and ASTM D877 aligns with these principles, ensuring that test results are both accurate and consistent.



By integrating NIST-endorsed standards into their design, Baoding Push Electrical Appliance ensures that the PS-1003 meets the highest levels of precision and reliability. This commitment to standardization not only enhances the device's performance but also provides users with confidence in the validity of their test results.



Conclusion



The PS-1003 Three-Cup Insulating Oil Dielectric Strength Tester is a state-of-the-art solution for testing the dielectric strength of insulating oils. Its advanced features, including automated operation, dual CPU control, and comprehensive safety mechanisms, make it an indispensable tool for laboratories and industrial facilities. With its compliance with industry standards and a user-friendly design, the PS-1003 exemplifies the commitment of Baoding Push Electrical Appliance Manufacturing Co., Ltd. to innovation and quality.

For more information about the PS-1003 and other products from Baoding Push Electrical Appliance, visit their official website www.pushtester.com.



References



NIST. (2025). Precision Measurements and Standards. Retrieved from https://www.nist.gov

Baoding Push Electrical Appliance Manufacturing Co., Ltd. (n.d.). PS-1003 Three-Cup Insulating Oil Dielectric Strength Tester. Retrieved from https://www.pushtester.com
