The PUSH Electrical PS-SC03 Three Phase Secondary Current Injection Kit is a cutting-edge testing solution designed for power system engineers and technicians. This device is engineered to simulate complex electrical faults and verify the performance of relays, protection systems, and microcomputer-based protection units. With its advanced technical specifications and robust design, the PS-SC03 ensures accurate and reliable testing in both laboratory and field environments. Below is a comprehensive overview of its features, capabilities, and applications.

Product Overview

The PS-SC03 is a three-phase secondary current injection kit that combines high-performance hardware and sophisticated software to deliver precise control over electrical waveforms. It is particularly suited for testing three-phase relay test kits and 3 phase secondary injection test sets, making it an essential tool for power system maintenance and quality assurance. The device’s ability to simulate a wide range of fault conditions, including transient and harmonic disturbances, ensures comprehensive testing of protection systems.

One of the standout features of the PS-SC03 is its high-performance industrial control computer, which runs the Windows operating system directly. This allows for seamless integration with modern testing software and provides a user-friendly interface for configuring test scenarios. The device also includes a 6.4-inch TFT true color LCD display, a tracking ball, and an optimized keyboard, eliminating the need for external peripherals. This design enhances usability in both controlled and remote testing environments.

The digital signal processor (DSP) microcomputer serves as the core of the PS-SC03, enabling high-speed data processing and waveform generation. The 32-bit double precision arithmetic in the software ensures that arbitrary high-accuracy waveforms can be produced for each phase. This level of precision is critical for testing complex power system scenarios, such as fault transients and harmonic distortions.

The D/A conversion and low-pass filtering components further enhance the device’s accuracy. High-precision D/A converters ensure that the current and voltage outputs maintain linearity across the entire range, while the low-pass filters eliminate high-frequency noise that could interfere with neighboring equipment. This makes the PS-SC03 ideal for environments where electromagnetic interference (EMI) is a concern.

The voltage and current amplifier system is another key feature. By using a high-performance linear amplifier output mode, the PS-SC03 can generate a wide variety of waveforms, from DC to complex harmonic combinations. This flexibility allows the device to simulate real-world fault conditions, such as short circuits, which are essential for testing relay and protection systems. The output waveforms are also smooth and clear, minimizing the risk of interference with other equipment.

The digital input and output (I/O) capabilities of the PS-SC03 include 10 channels of digital input and 8 channels of digital output. This enables the device to interface with a wide range of testing equipment and control systems. Additionally, the auxiliary DC power supply on the rear panel provides 110V and 220V outputs, offering a reliable standby power source during field tests.

Technical Specifications

The PS-SC03 is equipped with a comprehensive set of technical specifications that highlight its versatility and performance. Below is a detailed table of its key parameters:

AC Current Output
Phase current output (effective value)	0–40A, Output Precision 0.2 degree
3 phase parallel current output (effective value)	0–120A
Long-time Phase current	10A
Maximum output power of Phase current	450VA
Maximum output power of 3 parallel current	900VA
Maximum Permitted work time of 3 parallel current	10S
Frequency range (fundamental)	0–1000Hz
Harmonic time	0–20
DC Current Output
Current output	0～±10A / phase, 0～±30A / 3 parallel
Output Precision	0.5 degree
AC Voltage Output
Phase voltage output (effective value)	0–120V Output Precision 0.2 degree
Line voltage output (effective value)	0–240V
Phase voltage / Line phase output power	80VA / 100VA
Frequency range (fundamental)	0–1000Hz
Harmonic time	0–20
DC Voltage Output
Phase voltage output range	0～±160V Output Precision 0.5 degree
Line voltage output range	0～±320V
Phase voltage / Line phase output power	70VA / 140VA
Digital I/O
10 path digital input and 8 path digital output	–
Time measuring range	0.1ms ～ 9999s
Accuracy of measurement	＜0.1ms

Applications and Use Cases

The PS-SC03 is designed for a wide range of applications in power system testing, including:

• Relay Testing: The device can simulate various relay types, such as current, voltage, inverse time, power direction, impedance, differential, low cycle, synchronization, frequency, DC, intermediate, and time relays. This makes it ideal for verifying the accuracy and response time of protective relays.
• Microcomputer Protection Testing: The PS-SC03 is compatible with microcomputer-based protection systems, allowing for the simulation of complex fault scenarios and the evaluation of system performance under stress conditions.
• Transient Fault Simulation: The device’s ability to generate transient waveforms, such as fault transients and harmonic overlaps, ensures that protection systems can be tested under realistic conditions.
• Field and Laboratory Testing: With its rugged design and auxiliary DC power supply, the PS-SC03 is suitable for both controlled laboratory environments and on-site field testing.

For more information on the PS-SC03 and its applications, visit the product page.

Company Background: Baoding Push Electrical Appliance Manufacturing Co., Ltd.

The PS-SC03 is manufactured by Baoding Push Electrical Appliance Manufacturing Co., Ltd., a leading company in the design and production of electrical testing equipment. With a focus on innovation and quality, the company has established itself as a trusted provider of solutions for power system testing and maintenance.

Baoding Push Electrical Appliance Manufacturing Co., Ltd. is committed to delivering products that meet the highest standards of performance and reliability. Their expertise in electrical engineering and commitment to customer satisfaction have made them a key player in the industry. For more details about the company, visit the company website.

Why Choose the PS-SC03?

The PS-SC03 offers several advantages that make it a preferred choice for power system testing:

• High Precision: The device’s advanced D/A conversion and DSP technology ensure accurate waveform generation and measurement, minimizing errors in testing.
• Flexibility: With its ability to simulate a wide range of waveforms and fault conditions, the PS-SC03 is suitable for diverse testing scenarios.
• User-Friendly Interface: The integrated LCD display and optimized keyboard provide an intuitive user experience, reducing the learning curve for operators.
• Durability: The robust design and auxiliary DC power supply make the PS-SC03 reliable for both laboratory and field use.

For a visual demonstration of the PS-SC03 in action, watch the video below:

Conclusion

The PUSH Electrical PS-SC03 Three Phase Secondary Current Injection Kit is a powerful and versatile tool for power system testing. Its advanced technical specifications, user-friendly design, and robust performance make it an essential asset for engineers and technicians working in the electrical industry. Whether used for relay testing, microcomputer protection evaluation, or transient fault simulation, the PS-SC03 ensures accurate and reliable results.

For more information about the PS-SC03, visit the product page or explore the offerings of Baoding Push Electrical Appliance Manufacturing Co., Ltd. at their website.

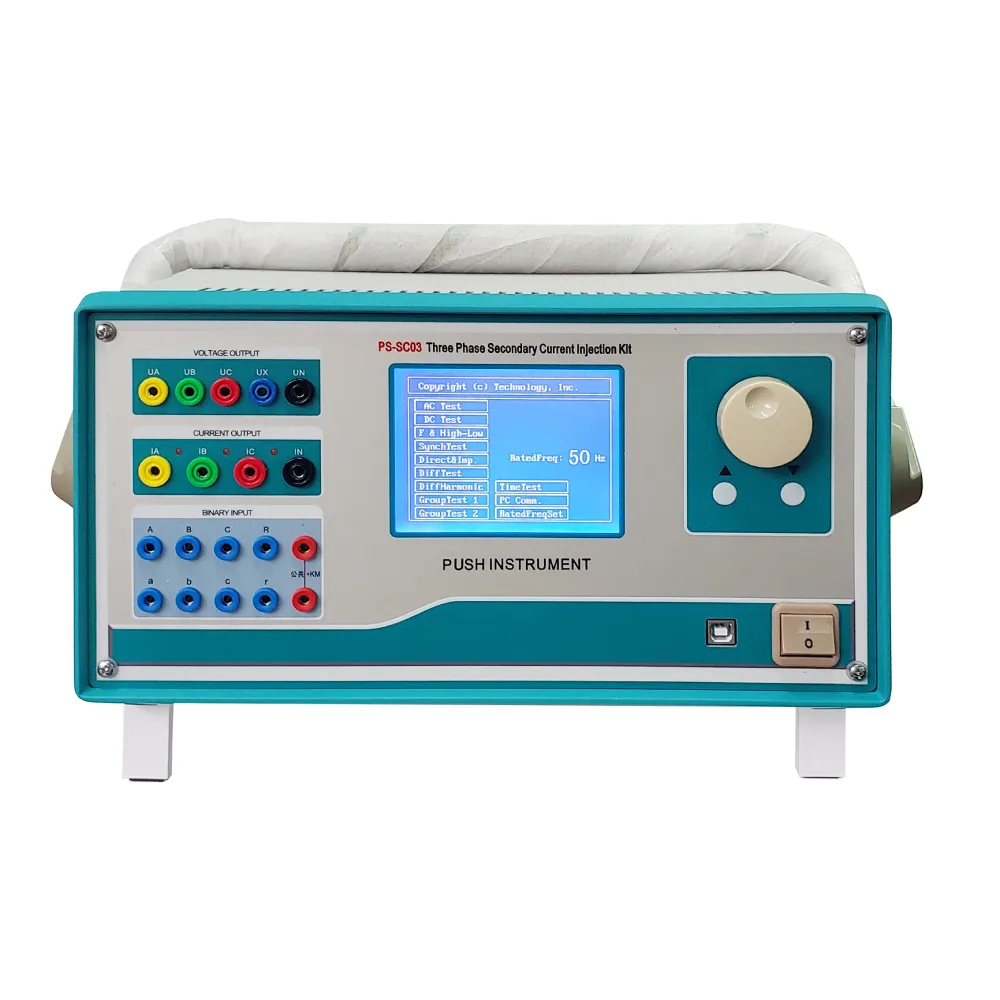

Product Images

References

The information provided in this article is based on the specifications and descriptions provided by Baoding Push Electrical Appliance Manufacturing Co., Ltd. and the National Institute of Standards and Technology (NIST). NIST plays a critical role in developing standards and measurement technologies that support the advancement of electrical and electronic systems. For more details on NIST’s contributions to the field, visit their official website.
