Understanding Insulation Resistance Testing for 250V Electrical Systems and Equipment

Understanding 250V Insulation Resistance Testing

Insulation resistance testing is a critical procedure in the maintenance and safety evaluation of electrical systems. Insulation resistance tests are primarily conducted to ensure that electrical equipment is safe for operation and is not prone to electrical failures that can lead to hazards such as electric shock, equipment damage, or even fire. One of the common testing voltages used for these inspections is 250 volts (V). In this article, we will delve into the importance of 250V insulation resistance testing, the methodology, and the implications of the results.

The Importance of Insulation Resistance Testing

Electrical insulation is the protective barrier that prevents the flow of electric current to unintended paths. Over time, insulation materials can degrade due to various factors, including heat, moisture, chemical exposure, and mechanical wear. As the insulation deteriorates, the risk of leakage current increases, which can cause equipment malfunction and pose safety risks. Regular insulation resistance testing can help identify these weaknesses in insulation, ensuring that they are addressed before they lead to significant problems.

The 250V test is typically utilized for low-voltage applications, such as motors, transformers, and electronic equipment. It is considered safe for sensitive components, allowing for effective testing without damaging the insulation material or the equipment being tested.

Methodology of 250V Insulation Resistance Testing

The procedure for conducting a 250V insulation resistance test is relatively straightforward. Here are the basic steps involved

1. Preparation Prior to testing, ensure that all equipment is de-energized and disconnected from power sources. It is also essential to safely discharge any capacitive components to prevent injury or damage to the tester.

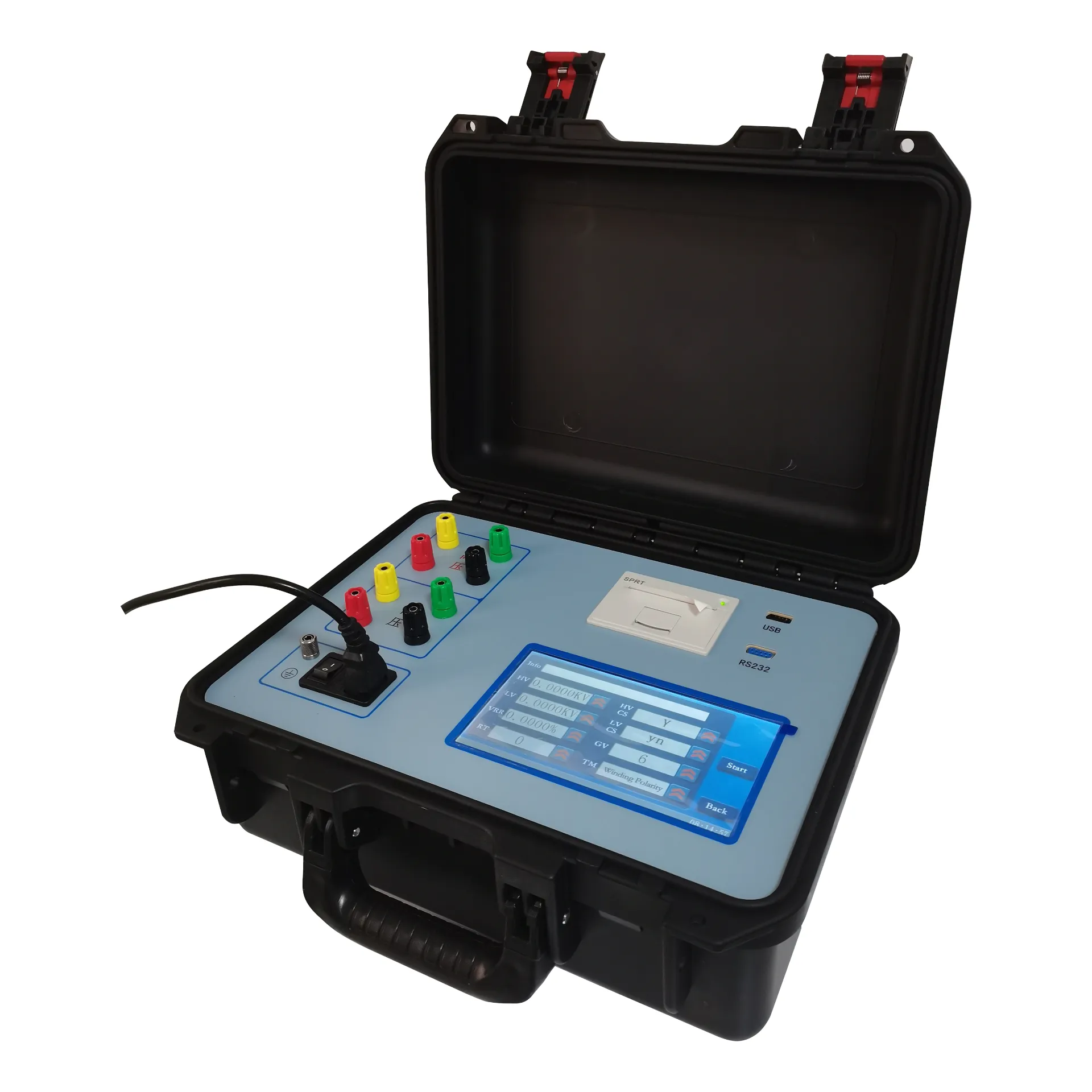

2. Connecting the Tester Use an insulation resistance tester, also known as a megohmmeter, to connect the positive lead to the conductor and the negative lead to the equipment chassis or ground. The tester generates a constant DC voltage, which measures the resistance of the insulation.

3. Performing the Test Activate the tester and allow it to run for a predetermined time, typically 1 minute. This duration ensures that an accurate and stable reading is obtained. The insulation resistance value is measured in megohms (MΩ).

4. Interpreting Results After the test, analyze the readings. A higher insulation resistance value (typically above 1 MΩ) indicates good insulation condition, while a significantly lower value may suggest deteriorated insulation.

5. Documenting Findings It is essential to record the test results, including the date, equipment tested, and the resistance measured. This data is invaluable for trending and maintaining equipment over time.

Implications of Test Results

The results of the 250V insulation resistance test can have significant implications for the operation of electrical equipment

- Good Readings If the insulation resistance readings are high, the equipment is considered safe and operational. Regular testing can help establish a baseline for future assessments.

- Low Readings Lower readings may require immediate attention. Depending on the severity, this may involve isolating the equipment, carrying out repairs, or in some cases, replacing insulation materials entirely.

- Trends Tracking insulation resistance over time can reveal trends that indicate a gradual deterioration of insulation, which may not be visible through a simple visual inspection. Early detection of these trends can facilitate preemptive maintenance, reducing the risk of unexpected failures.

Conclusion

In conclusion, 250V insulation resistance testing is a vital tool for ensuring the safety and reliability of electrical equipment. By routinely conducting these tests, professionals can detect insulation issues before they escalate, thus safeguarding personnel and property. With the right methodology and interpretation of results, insulation resistance testing acts as a preventive measure that contributes significantly to the overall health of electrical systems. As technology evolves, embracing advanced testing methods and equipment will enhance our ability to maintain and operate electrical assets safely and efficiently.
