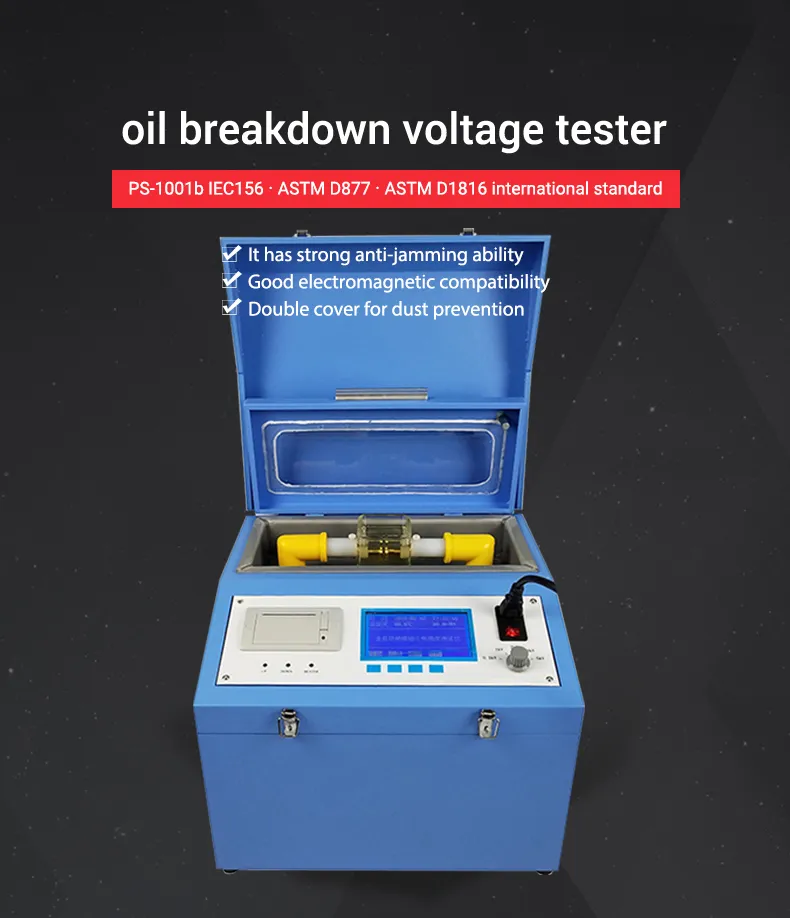

PUSH electric PS-1001B Double Opening Single Cup Insulation Oil breakdown voltage Bdv Tester

The insulating oil dielectric strength tester is our main product. PS-1001B is one of the three single-cup insulating oil dielectric strength testers produced by our company, which is more suitable for storage and outdoor double-open cover oil withstand voltage testing. The double-open cover design can effectively prevent the influence of external environmental factors on the test results.

CONTACT NOW DOWN LOAD TO PDF

Details

Tags

Selling Point Introduction

bdv kits

1, The instrument is controlled by a large capacity single chipmicrocomputer, and the work is stable and reliable.
2, There is a wide range watchdog circuit in the instrument toeliminate the phenomenon of death.
3, A variety of operation options, the instrument with astm d1816,astm d877 ,IEC156 three national standard methods and customoperation, can adapt to different users of a variety of choices;
4, An instrument using special glass mold for one time, prevent theoccurrence of oil spills and other interference phenomenon;
5, The unique high voltage terminal sampling design of theinstrument allows test values to directly enter the A/D converter,avoiding the errors caused by analog circuits, and making the measurement results more accurate.
6, The instrument has the functions of over current, overvoltage,shortcircuit and so on, and has very strong anti-interference ability andgood electromagnetic compatibility.
7,Portable structure, easy to move, easy to use both inside and outside.

Product Parameter Characteristics

Name	Indicators
Output voltage	0~80 kV or 0-100kV
THVD	<1%
Pressure rate	0.5~5.0 kV/s
Booster capacity	1.5 kVA
Measurement accuracy	±2%
Supply voltage	AC 220 V ±10%
Power frequency	50 Hz ±2%
Power	200 w
Applicable temperature	0~45℃
Applicable humidity	<85 % RH
Width * height * depth	410×390×375 (mm)
Net weight	~ 32 kg
