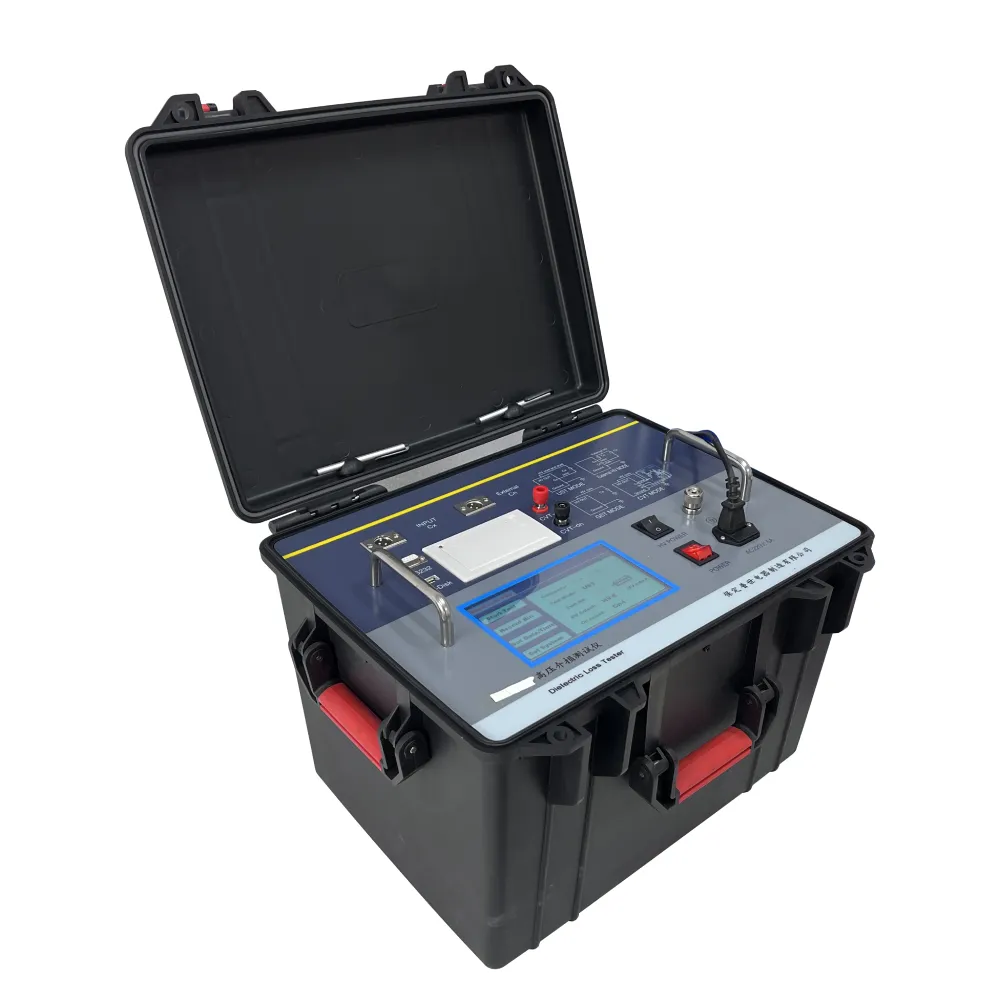

PUSH Electrical PS-JSB01 Transformer Dielectric Loss Analysis Tan Delta Tester

The tester leungitna diéléktrik adopts téhnologi catu daya frékuénsi variabel, microcomputer chip tunggal jeung téhnologi modéren pikeun konversi frékuénsi otomatis, konversi analog-to-digital sarta operasi data; Cai mibanda kamampuhan anti gangguan kuat, speed test gancang, precision tinggi, digitization otomatis tur operasi basajan; The catu daya adopts tinggi-kakuatan switching catu daya, nu bisa nyadiakeun tegangan maksimum 10kV; Éta tiasa sacara otomatis nyaring gangguan 50Hz sareng cocog pikeun uji dina situs kalayan gangguan éléktromagnétik ageung sapertos gardu induk. Hal ieu loba dipaké pikeun pangukuran leungitna diéléktrik tina trafo, silih induktor, bushings, kapasitor, arresters jeung alat sejenna dina industri kakuatan.

KONTAK AYEUNA Turunkeun beban kana PDF

Rincian

Tag

Produk Selling Point Bubuka

Pedaran inti
The tester leungitna diéléktrik adopts téhnologi catu daya frékuénsi variabel, microcomputer chip tunggal jeung téhnologi modéren pikeun konversi frékuénsi otomatis, konversi analog-to-digital sarta operasi data; Cai mibanda kamampuhan anti gangguan kuat, speed test gancang, precision tinggi, digitization otomatis tur operasi basajan; The catu daya adopts tinggi-kakuatan switching catu daya, nu bisa nyadiakeun tegangan maksimum 10kV; Éta tiasa sacara otomatis nyaring gangguan 50Hz sareng cocog pikeun uji dina situs kalayan gangguan éléktromagnétik ageung sapertos gardu induk. Hal ieu loba dipaké pikeun pangukuran leungitna diéléktrik tina trafo, silih induktor, bushings, kapasitor, arresters jeung alat sejenna dina industri kakuatan.
Bubuka
1. instrumen The adopts Fourier transformasi téhnologi nyaring digital pikeun ngukur capacitance, leungitna diéléktrik sarta parameter lianna. Hasil tés gaduh presisi anu luhur sareng gampang pikeun ngawujudkeun pangukuran otomatis.
2. instrumen The adopts téhnologi konversi frékuénsi pikeun ngaleungitkeun 50Hz gangguan frékuénsi kakuatan dina situs, sarta bisa ngukur data dipercaya malah dina lingkungan gangguan éléktromagnétik kuat.
3. Panyimpenan data: sacara internal dilengkepan ku chip almenak sareng mémori kapasitas ageung, anu tiasa nyimpen hasil tés iraha waé, ningali catetan sajarah iraha waé, sareng nyitak.
4. Data instrumen bisa diékspor ngaliwatan USB flash disk.
5. Modél terpadu kalayan kapasitor baku sarta catu daya tegangan tinggi, nu merenah pikeun uji sawah jeung ngurangan wiring widang.
6. Cai mibanda fungsi wiring sabalikna shielding tegangan low. Dina kaayaan grounding beus 220kV CVT, leungitna diéléktrik C11 bisa diukur tanpa megatkeun sambungan kabel 10kV sabalikna.
7. Bisa ngaidentipikasi frékuénsi suplai kakuatan-tegangan tinggi éksternal ti 40Hz mun 70Hz, sarta eta diwenangkeun ngagunakeun catu daya frékuénsi kakuatan atawa séri catu daya resonant pikeun kapasitas badag sarta tegangan tinggi test leungitna diéléktrik.
8. Kalawan fungsi test CVT, éta bisa ngawujudkeun CVT test éksitasi diri, sarta bisa nyetél opat wates panyalindungan tegangan tinggi / ayeuna jeung tegangan low / ayeuna pikeun mastikeun kaamanan pribadi jeung alat.
9. Nalika nguji CVT, éta teu ngan bisa otomatis nguji capacitance sarta leungitna diéléktrik of C1 na C2, tapi ogé nguji total capacitance sarta leungitna diéléktrik pakakas CVT.
10. Kalawan printer termal.
11. Kalawan panganteur komputer. Hiji komputer bisa ngadalikeun 32 instrumen, nu bisa terpadu kana wahana test tegangan tinggi komprehensif pikeun ngawujudkeun pangukuran, ngolah data jeung kaluaran laporan.
12. Fungsi panyalindungan grounding, fungsi panyalindungan shock listrik.

Parameter produk

Akurasi	Cx	± (maca) × 1%+1pF）
	tg d	± (maca) × 1%+0,00040）
Indéks anti gangguan	konvérsi frékuénsi anti gangguan, nu masih bisa ngahontal akurasi luhur dina 200% gangguan
Rentang kapasitansi	Internal diterapkeun tekanan tinggi	3pF～60000pF/10kV 60pF～1 μ F/0.5kV
	Externally dilarapkeun tegangan tinggi	3pF～1.5μF/10kV 60pF～30μF/0.5kV
	kakuatan resolving	Nepi ka 0,001pf, 4 digit signifikan
tg δ Rentang	Unlimited, resolusi 0.001%, idéntifikasi otomatis tina capacitance, induktansi jeung lalawanan.
Uji rentang ayeuna	10 µ A～5A
Internal diterapkeun tekanan tinggi	Nyetél rentang tegangan	0,5 ~ 10KV
	arus kaluaran maksimum	200mA
	Modeu naék sareng turun tegangan	tegangan diatur dina will. Contona, 5123v.
	Frékuénsi tés	40-70HZ, set frékuénsi tunggal di will. Contona, 48.7hz
		Konvérsi frékuénsi ganda otomatis tina 50 ± 0.1Hz ka 50 ± 10Hz tiasa disetél dina kahayang.
		Konvérsi frékuénsi ganda otomatis tina 60 ± 0.1Hz ka 60 ± 10Hz tiasa disetél dina kahayang.
	Frékuénsi akurasi	± 0,01Hz
Externally dilarapkeun tegangan tinggi	Arus tés maksimum salami sambungan positip nyaéta 5a, frékuénsi kakuatan atanapi konvérsi frékuénsi nyaéta 40-70HZ
	Arus tés maksimum salami kabel ngabalikkeun nyaéta 10kV / 5A, frékuénsi kakuatan atanapi konvérsi frékuénsi nyaéta 40-70HZ
CVT éksitasi diri kaluaran tegangan low	tegangan kaluaran 3 ~ 50V, kaluaran ayeuna 3 ~ 30A
waktos pangukuran	Ngeunaan 40s, patali jeung métode pangukuran
suplai kakuatan input	180V ~ 270vac, 50Hz ± 1%, kakuatan mains atanapi catu daya generator
panganteur komputer	panganteur RS232 baku, USB flash disk stop kontak (otomatis USB flash disk neundeun data).
Printer	printer termal mikro
suhu lingkungan	- 10 ℃ ~ 50 ℃
kalembaban relatif	< 90%
Gemblengna dimensi	460 × 360 × 350 mm
beurat alat	28kg
