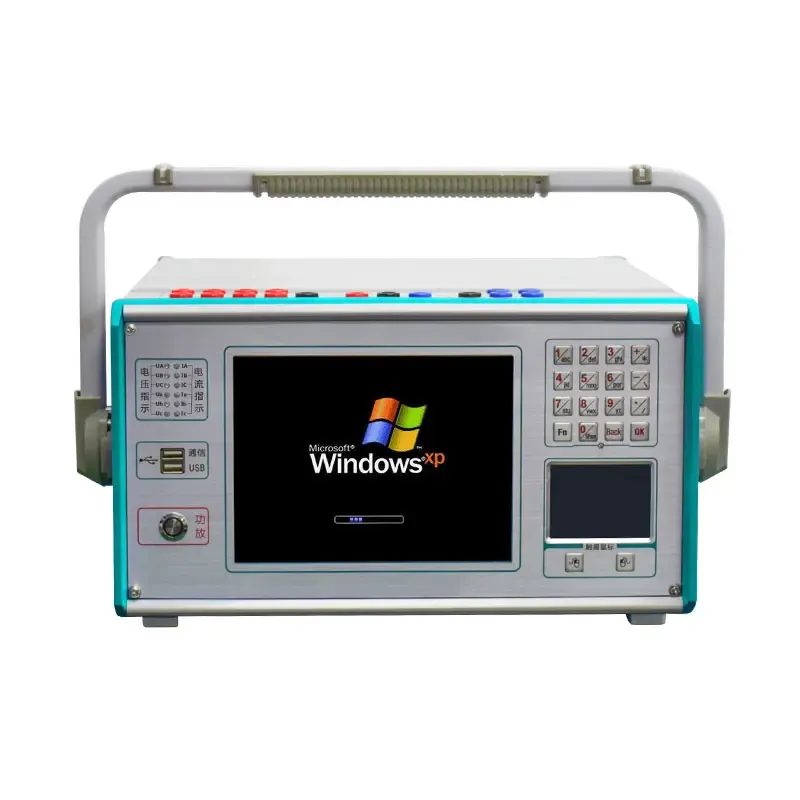

sekundér Ayeuna suntik Kit Protection Relay Tester

Alatna ngagaduhan tegangan opat fase standar sareng kaluaran arus tilu fase (tegangan genep fase sareng kaluaran arus genep fase). Éta henteu ngan ukur tiasa nguji rupa-rupa relay tradisional sareng alat panyalindungan, tapi ogé nguji rupa-rupa panyalindungan mikrokomputer modern, khususna pikeun panyalindungan kakuatan diferensial trafo sareng alat switching otomatis sayaga. Tésna langkung merenah sareng sampurna. Model No.: PS-902/903, PS-1200, PS-802/1620/1630

KONTAK AYEUNA Turunkeun beban kana PDF

Rincian

Tag

Produk Selling Point Bubuka

Pedaran inti

Alatna ngagaduhan tegangan opat fase standar sareng kaluaran arus tilu fase (tegangan genep fase sareng kaluaran arus genep fase). Éta henteu ngan ukur tiasa nguji rupa-rupa relay tradisional sareng alat panyalindungan, tapi ogé nguji rupa-rupa panyalindungan mikrokomputer modern, khususna pikeun panyalindungan kakuatan diferensial trafo sareng alat switching otomatis sayaga. Tésna langkung merenah sareng sampurna.

Bubuka
1. Antarbeungeut operasi Windows XP Palasik, panganteur lalaki-mesin ramah, operasi basajan tur gancang; kinerja tinggi study komputer kontrol industri jeung resolusi 8,4 inci tina 800 × The TFT tampilan warna leres 600 bisa nyadiakeun informasi euyeub tur intuitif, kaasup kaayaan gawé ayeuna tina parabot sarta sagala rupa informasi pitulung.
2. Sistem Windows XP asli boga fungsi recovery sorangan pikeun nyegah sistem kacilakaan disababkeun ku shutdown ilegal atawa misoperation.
3. Hal ieu dilengkepan keyboard industri ultra-ipis jeung mouse photoelectric, nu bisa ngalengkepan rupa operasi ngaliwatan keyboard atawa mouse kawas PC biasa.
4. Dewan kontrol utama adopts DSP + struktur FPGA jeung 16 bit kaluaran DAC. Bisa ngahasilkeun 2000 gelombang sinus dénsitas luhur per minggu pikeun gelombang fundamental, nu greatly ngaronjatkeun kualitas gelombang jeung akurasi tester.
5. The power amplifier adopts high fidelity linear power amplifier, anu henteu ngan ukur mastikeun katepatan arus leutik, tapi ogé mastikeun stabilitas arus anu ageung.
6. Ieu adopts panganteur USB pikeun komunikasi langsung jeung PC tanpa garis adaptor, nu merenah ngagunakeun.
7. Ieu bisa disambungkeun ka laptop (opsional) pikeun operasi. Komputer notebook sareng komputer industri nganggo parangkat lunak anu sami, sareng henteu kedah diajar deui metode operasi.
8. Cai mibanda fungsi test sinkronisasi GPS. alat nu bisa dilengkepan kartu sinkronisasi GPS diwangun-di (opsional) jeung disambungkeun jeung PC ngaliwatan port RS232 pikeun ngawujudkeun test adjustment sinkron dua testers di tempat béda.
9. Hal ieu dilengkepan bebas sarta husus DC kaluaran sumber tegangan bantu, sarta tegangan kaluaran nyaéta 110V (1a) jeung 220V (0.6A) mungguh.
Ieu bisa dipaké pikeun relays atawa alat pelindung merlukeun suplai kakuatan DC.
10.It boga fungsi software timer calibration, nu avoids muka chassis jeung calibrating akurasi ku nyaluyukeun potentiometer nu, sahingga greatly ngaronjatkeun stabilitas akurasi.

Parameter produk

3*20A
Kaluaran arus fase tunggal (nilai efektif)	0 - 20A / fase,	akurasi	0,2% ± 5mA
Kaluaran paralel tilu fase (nilai efektif)	0 — 60A / kaluaran paralel tilu-fase dina fase
Nilai kerja anu diidinan tina arus fase pikeun waktos anu lami (nilai efektif)	10A
kakuatan kaluaran maksimum unggal fase	200va
kakuatan kaluaran maksimum tilu-fase paralel ayeuna	600VA
Waktu kerja maksimum anu diidinan tina tilu kaluaran ayeuna paralel	30s
rentang frékuénsi	0 - 1000Hz	akurasi	0.01Hz
Frékuénsi harmonik	2-20 kali
Fase	0 — 360 °	akurasi	0,1 °

3*30A
Kaluaran arus fase tunggal (nilai efektif)	0 - 30A / fase,	akurasi	0,2% ± 5mA
Kaluaran paralel tilu fase (nilai efektif)	0 — 90a / kaluaran paralel tilu-fase dina fase
Nilai kerja anu diidinan tina arus fase pikeun waktos anu lami (nilai efektif)	10A
kakuatan kaluaran maksimum unggal fase	300VA
kakuatan kaluaran maksimum tilu-fase paralel ayeuna	800VA
Waktu kerja maksimum anu diidinan tina tilu kaluaran ayeuna paralel	30s
rentang frékuénsi	0 - 1000Hz	akurasi	0.01Hz
Frékuénsi harmonik	2-20 kali
Fase	0 — 360 °	akurasi	0,1 °

3*30A
Kaluaran arus fase tunggal (nilai efektif)	0 - 40A / fase	akurasi	0,2% ± 5mA
Kaluaran paralel tilu fase (nilai efektif)	0 — 120a / kaluaran paralel tilu-fase dina fase
Nilai kerja anu diidinan tina arus fase pikeun waktos anu lami (nilai efektif)	10A
kakuatan kaluaran maksimum unggal fase	420va
kakuatan kaluaran maksimum tilu-fase paralel ayeuna	1000VA
Waktu kerja maksimum anu diidinan tina tilu kaluaran ayeuna paralel	10s
rentang frékuénsi	0 - 1000Hz	akurasi	0.01Hz
Frékuénsi harmonik	2-20 kali
Fase	0 — 360 °	akurasi	0,1 °

6*20A
Kaluaran arus fase tunggal (nilai efektif)	0 - 20A / fase	akurasi	0,2% ± 5mA
Kaluaran paralel tilu fase (nilai efektif)	0 - 120a / genep kaluaran paralel fase sarua
Nilai kerja anu diidinan tina arus fase pikeun waktos anu lami (nilai efektif)	10A
kakuatan kaluaran maksimum unggal fase	200va
kakuatan kaluaran maksimum tilu-fase paralel ayeuna	800VA
Waktu kerja maksimum anu diidinan tina tilu kaluaran ayeuna paralel	30s
rentang frékuénsi	0 - 1000Hz	akurasi	0.01Hz
Frékuénsi harmonik	2-20 kali
Fase	0 — 360 °	akurasi	0,1 °

6*30A
Kaluaran arus fase tunggal (nilai efektif)	0 - 30A / fase	akurasi	0,2% ± 5mA
Kaluaran paralel tilu fase (nilai efektif)	0 - 180A / genep kaluaran paralel fase sarua
Nilai kerja anu diidinan tina arus fase pikeun waktos anu lami (nilai efektif)	10A
kakuatan kaluaran maksimum unggal fase	300VA
kakuatan kaluaran maksimum tilu-fase paralel ayeuna	1000VA
Waktu kerja maksimum anu diidinan tina tilu kaluaran ayeuna paralel	30s
rentang frékuénsi	0 - 1000Hz	akurasi	0.01Hz
Frékuénsi harmonik	2-20 kali
Fase	0 — 360 °	akurasi	0,1 °

Sumber arus DC

DC kaluaran ayeuna 0 - ± 10A / fase, akurasi

0,2% ± 5mA

Sumber tegangan AC

kaluaran tegangan fase tunggal	(Nilai éféktif) 0 - 125V / fase	akurasi	0,2% ± 5mV
Output tegangan garis (nilai efektif)	0 - 250V
Fase tegangan / tegangan kaluaran kakuatan garis	75va / 100VA
rentang frékuénsi	0 - 1000Hz	akurasi	0.001Hz
Frékuénsi harmonik	2-20 kali
Fase	0 — 360 °	akurasi	0,1 °

Sumber tegangan DC

Fase tunggal tegangan kaluaran amplitudo	0 — ± 150V	akurasi	0,2% ± 5mV
Amplitudo kaluaran tegangan garis	0 - ± 300V
Fase tegangan / tegangan kaluaran kakuatan garis	90va / 180va

Ngalihkeun terminal nilai

Ngalihkeun terminal input nilai	8 pasang
Kontak kosong	1 - 20mA, 24V, kaluaran aktif internal alat
Poténsi ngabalikeun	kontak pasip: lalawanan low sinyal sirkuit pondok
Kontak aktip	0-250V DC
Ngalihkeun nilai kaluaran terminal	4 pasang, kontak kosong, megatkeun kapasitas: 110V / 2a, 220V / 1A

Lain

Rentang waktu	1ms — 9999s, akurasi pangukuran 1ms
Volume unit sareng beurat	410 x 190 x 420mm3, kira-kira 18kg
Sasayogian tanaga	AC220V ± 10%, 50Hz, 10A
